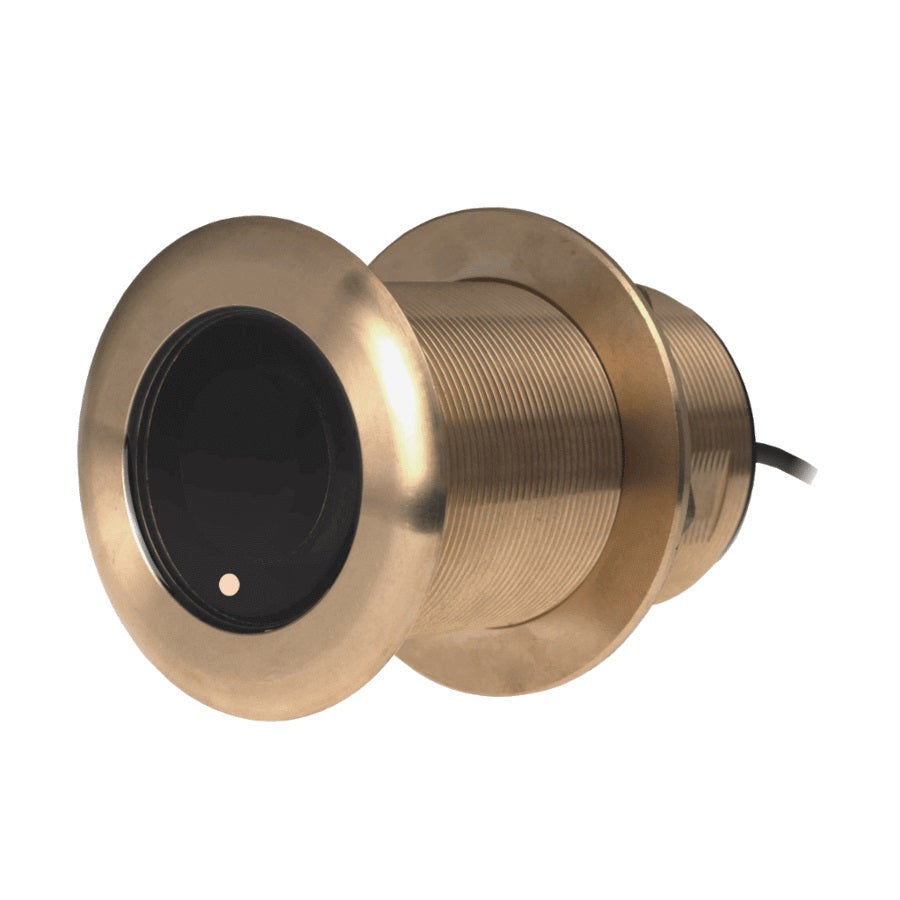

Airmar B75C-0-HW 0d Tilt High Wide CHIRP With Mix-n-Match Plug

Airmar B75 High Wide Chirp, 600W, 0 deg Tilt, M&M Transducer, DT

• Fixed 12 deg tilted version for 8 deg to 15 deg hull deadrise
• Depth and fast-response water-temperature sensor
• 600 W with a maximum depth performance to 106 m (350 feet)
• High frequency: 150 to 250 kHz
• 30 deg beamwidth
• High frequency delivers great shallow-water performance, bottom detail, and clear fish-target returns
• Low-profile, thru-hull housing provides good resolution at speed when installed properly
• Bronze housing for use on stepped, planing or displacement hull
• Exclusive Xducer ID(R) technology

Airmar's low profile Chirp-ready transducer models are the perfect addition to smaller boats such as center consoles. The B75HW combines the benefits of the high frequency band for amazing target separation on baitfish and schooling gamefish, with a wide 30 deg beamwidth for maximum coverage under the boat. The B75HW transducer delivers up to 100 kHz of total bandwidth in just one installation and delivers amazing coverage under the boat in depths to 106 m (350 feet).

Tilted ElementTM transducers have the ceramic element fixed at a 20 deg, 12 deg or 0 deg angle within the housing. The transducer is installed almost flush to the hull. The tilt of the element corrects for the hull deadrise by orienting the beam directly down. This ensures maximum echo returns to the transducer for more accurate depth readings.

AIRB75C0HWMM
model_number: B75C-0-HW-MM
