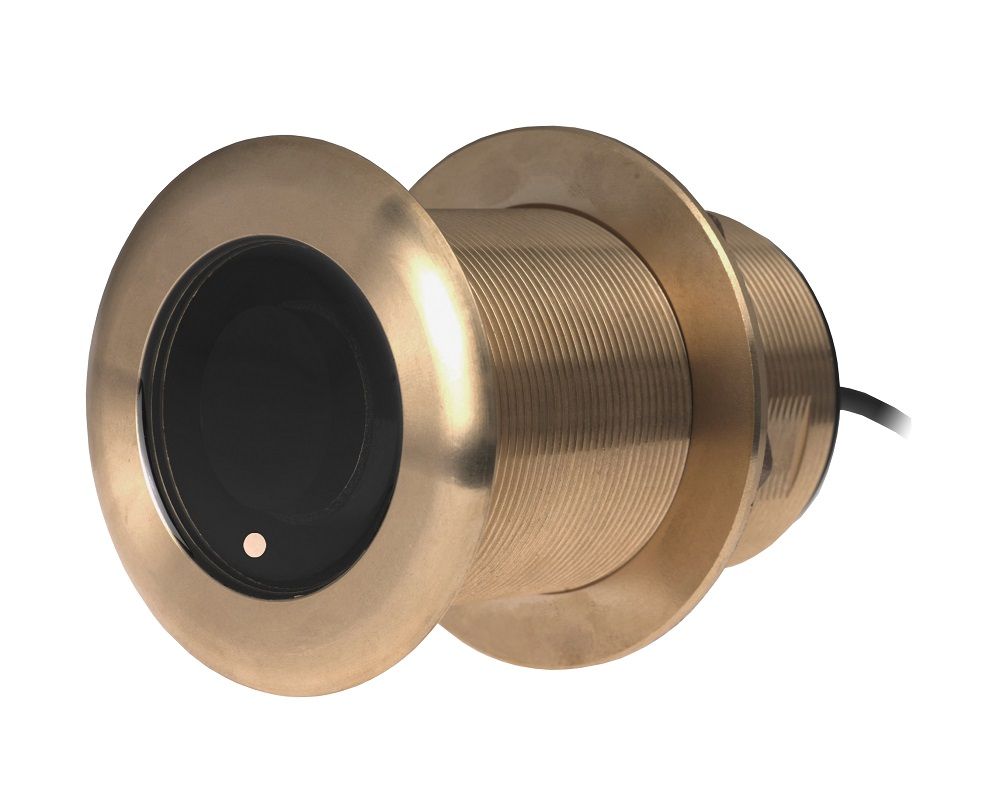

Airmar B75C-0-M 0d Tilt Medium CHIRP Furuno 12-Pin Cable

Airmar B75C 0 deg tlted element Medium CHIRP Bronze Thru Hull with Furuno 12-Pin Mix-N-Match Cable

• Depth & fast-response water-temperature sensor
• 600 W of power with a maximum depth of 274 m (900 feet)
• Medium frequency: 80 to 130 kHz
• 24 deg to 16 deg beamwidth
• Medium frequency provides good shallow-water performance, bottom detail, and deeper performance than high-frequency band
• Low-profile, thru-hull housing delivers good display resolution at speed when installed properly
• Bronze housing for use in a fiberglass or wood hull
• Patented Xducer ID(R) technology

Airmar's low-profile, Chirp-ready, transducer models are the perfect addition to smaller boats such as center consoles. Operating at a frequency range of 80 to 130 kHz, the B75M delivers up to 50 kHz of total bandwidth in just one installation. This transducer shows amazing bottom detail in shallow and medium depths down to 274 m (900 feet).

When the transducer is installed almost flush to the hull, the tilt of the element corrects for the hull deadrise, orienting the beam directly down. This ensures maximum echo returns to the transducer and more accurate depth readings.

• B75C-0-M-MM
• MMC-12F Cable
"

AIRB75C0M12F
model_number: B75C-0-M-12F
