Blue Sea Systems

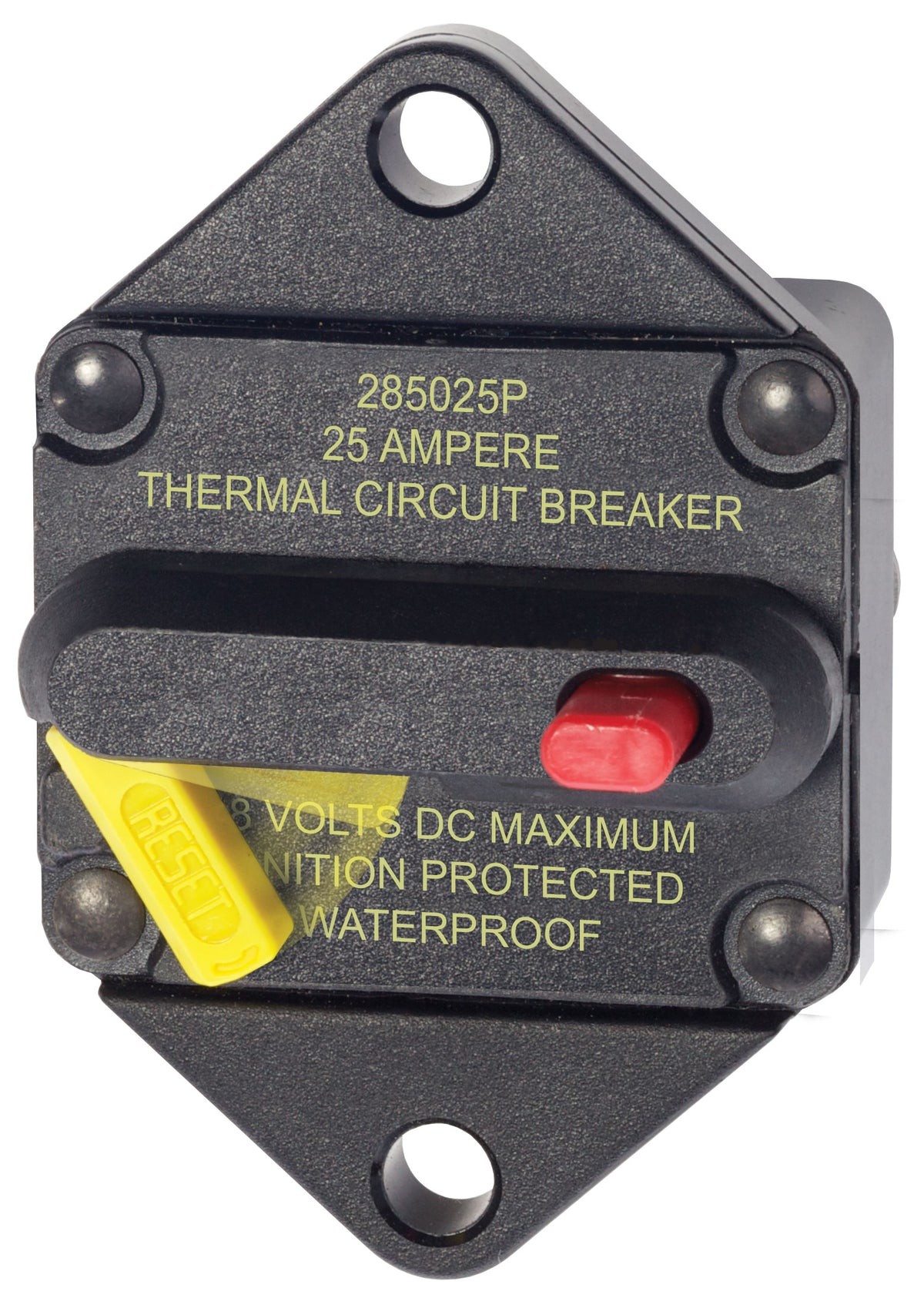

Blue Sea 285-Series 25 Amp Circuit Breaker Panel Mount
$79.99
Save $-79.99
Ble Sea Systems 285-Series Circuit Breaker - Panel Mount 25A
In stock at Marine Supply - Cape May
Free expert assistance · (609) 884-0330
30-day easy returns · Free in-store pickup at both Cape May locations
Description
Ble Sea Systems 285-Series Circuit Breaker - Panel Mount 25A
Model: 7080-BSS- Drop in replacement for 185-Series Circuit Breakers
- Visible reset lever shows open condition
- Ignition protected - Safe for installation aboard gasoline powered boats
- Meets SAE J1171 external ignition protection requirements
- Weather Resistant
- Combines switching and circuit breaker function into one unit*
- Trip Free" - cannot be held closed after trip
* Do not use as a switch where high inrush currents are expected
Specifications| Amperage | 25A |
| Maximum Voltage | 48V DC |
| Mounting | Surface Mount |
| Circuit Breaker Type | Thermally responsive Bi-metal blade |
| Terminal Stud Torque | 60 in-lb (6.78 Nm) |
| Interrupt Capacity | 3000A @ 48V |
| Minimum Operating Temperature | -40 deg C |
| Maximum Operating Temperature | 85 deg C |
| Circuit Breaker Class | Type III - switchable/manual reset - trip free |
| Terminal Stud | M6 (accepts 1/4 in Ring Terminal) |
BSS7080
model_number: 7080-BSS
Specifications
Specifications
| Brand | Blue Sea Systems |
|---|---|
| UPC / Barcode | 632085070809 |
