Egis Mobile Electric
Egis Class T Fuse Block 225-400 A - Sealed
$44.60
Save $-44.60

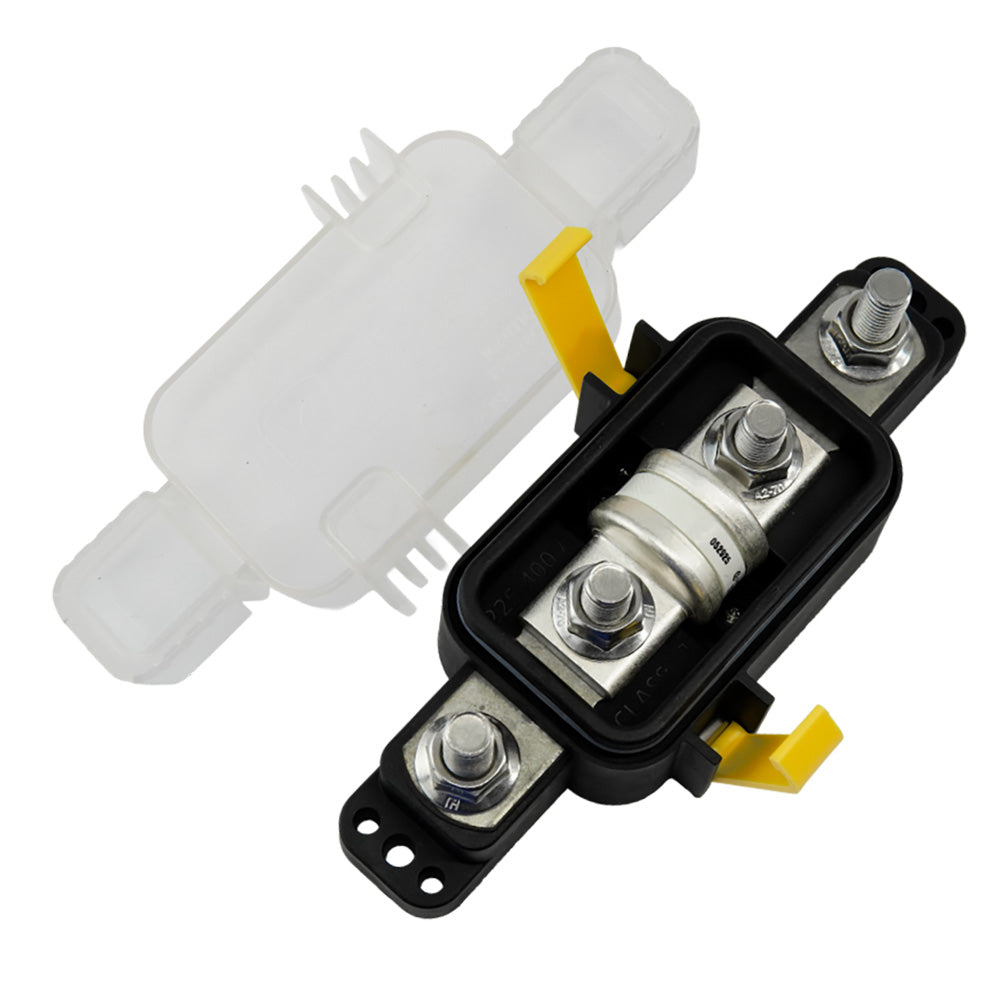

Class T Fuse Block 225-400 A - Sealed
Free expert assistance · (609) 884-0330
30-day easy returns
Description
Class T Fuse Block 225-400 A - Sealed
Applications/Problems This Solves:
- Separate Stud Connections for Cable Mounting allow heavier gauge cables and their terminals to feed in and out of the fuse, which would otherwise land on the fuse tab itself.
- Ignition Protected to support installation in potentially hazardous gaseous environments such as LPG or on gas boats.
Features:
- Tin-plated copper busbar delivers superior electrical performance with minimal voltage drop.
- Stainless Steel Self-Locking Hardware ensures robust connections & long-term connection reliability.
- Bulletproof construction from glass-filled nylon delivers the highest longevity in demanding environments.
- 4 Year Warranty
Specifications:
- Maximum Amperage: 225-400A
- Max Voltage: 80 VDC
- Ingress Protection Ratings: IP66, IP67, IP6K9K
- Mounting Holes: 4x #10 (M5) & 2x 1/4" (M6)
- Mounting Screw Max Torque: 50 in-lbs (5.5 N-m)
- Busbar Material: Tin-Plated Copper
Manufacturer Part #: 3912
Specifications
Specifications
| Brand | Egis Mobile Electric |
|---|---|
| Category | Fuse Blocks & Fuses |
| UPC / Barcode | 850067590729 |
| Weight | 1.19 lb |
