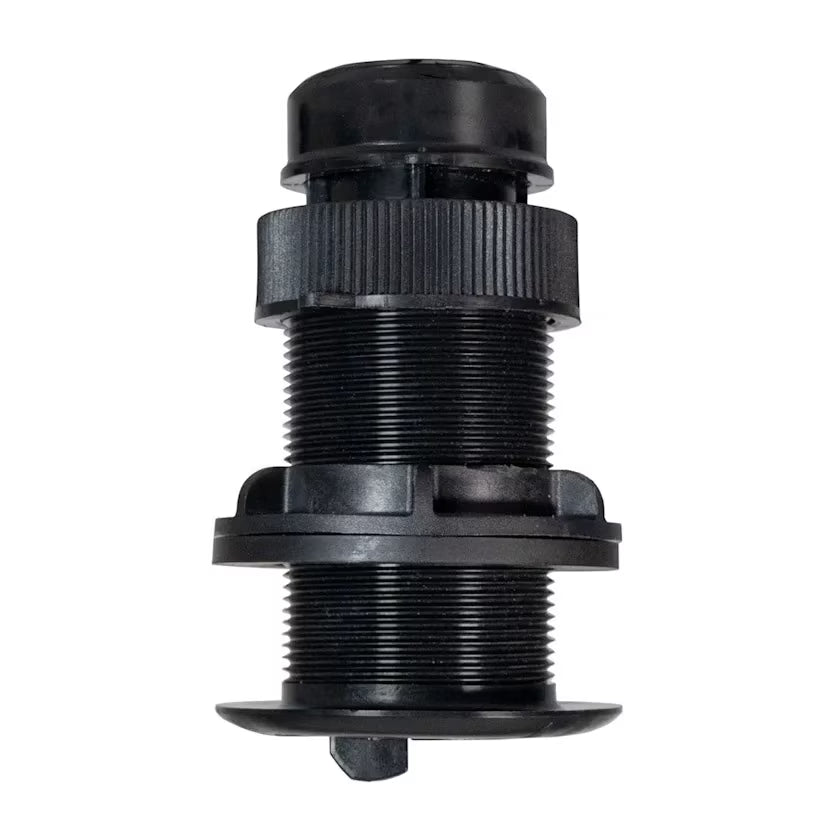

Garmin DST820 Smart Transducer with Plastic Housing
Checkout rates for this item at the selected quantity.
Garmin DST820 Smart Transducer with Plastic Housing
Description
Garmin DST820 Smart Transducer with Plastic Housing
Model: 010-11051-30
This plastic thru-hull NMEA 2000® smart transducer combines precise depth, speed and temperature signals with attitude sensing for heel/trim and pitch/roll data. It can read depths to 330 feet and offers fast 5 Hz water speed signal output for smoother visualization on compatible chartplotters or other displays.
Wireless Bluetooth® connectivity makes it easy to manage calibration of sensor data through the AIRMAR Cast™ app interface. And the 235 kHz sensor operating frequency helps prevent mutual interference with other echosounder devices on the vessel. The transducer’s wide, fan-shaped beamwidth of 10 x 44 degrees enables it to find bottom even when installed on steep deadrise hulls or heeling sailboats.
Specifications
| General | |
| Transducer frequency | 235 kHz |
| Transducer power | 100 W |
| Transducer beamwidth | 10 x 44 degrees |
| Transducer maximum depth | 330 ft |
| Transducer depth/speed/temperature | Depth, Temperature and Speed |
| Connector | NMEA 2000 |
| Transducer supported deadrise/transom angles | 0 to 22 degrees |
| Transducer Support | |
| Transducer frequency | 235 kHz |
GAR0101105130
model_number: 010-11051-30
Specifications
Specifications
| Brand | Garmin |
|---|---|
| Category | NMEA 2000 Sensors |
| UPC / Barcode | 753759381813 |
| Weight | 2.2 lb |
