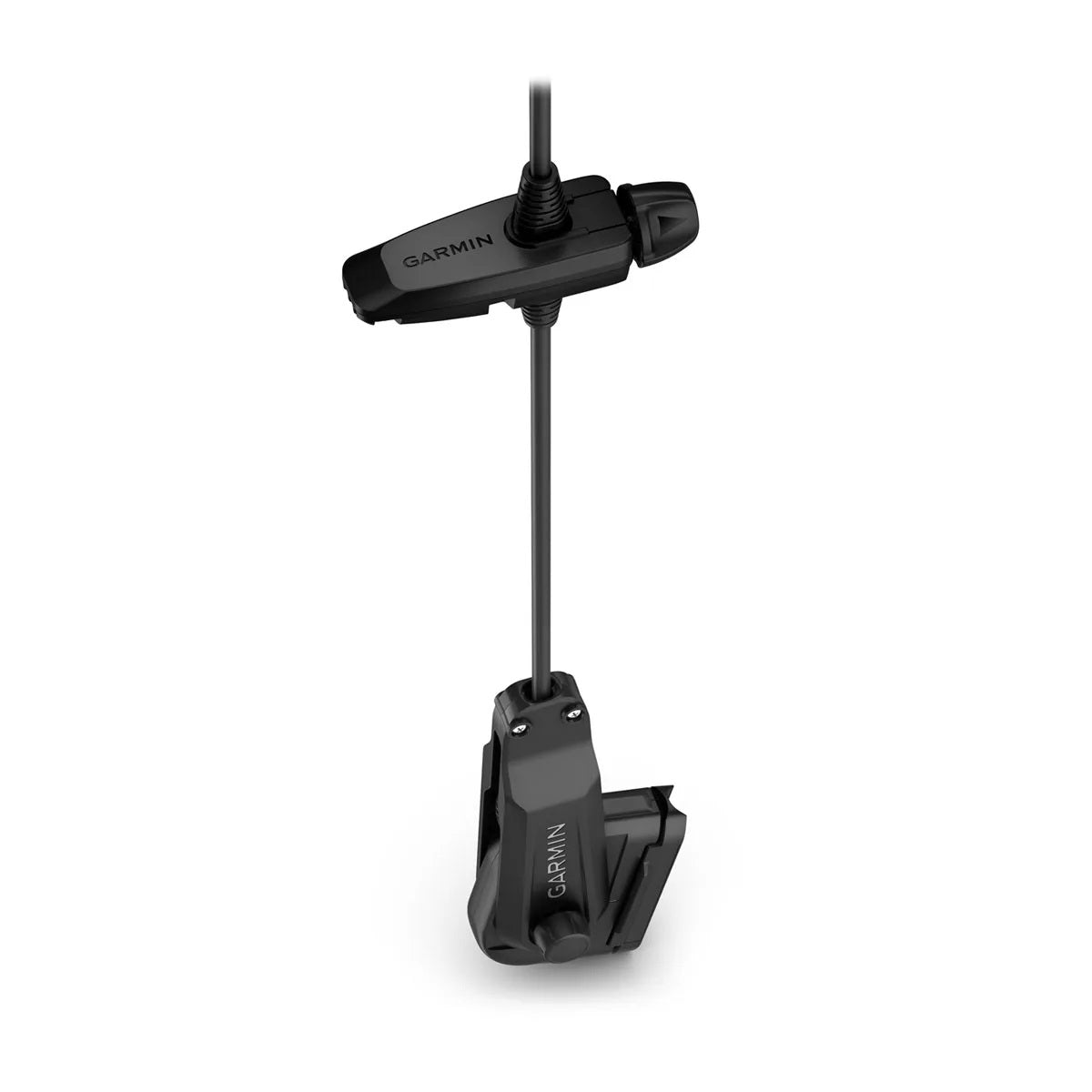

Garmin Panoptix PS22-IF Portable Live Sonar
Garmin PanoptixTM PS22-IF Portable Live Sonar
Description
Garmin PanoptixTM PS22-IF Portable Live Sonar
Model: 010-01945-10Hop faster between holes with the ultraportable Panoptix PS22-IF transducer. This live sonar transducer has an all-new bracket and rotator - which eliminates the need for a bulky pole mount - as well as a removable lens so you can optimize the sonar beam angle for the water below. Locate schools of fish in real time with two types of Panoptix sonar: LiveVüTM Forward and LiveVüTM Down scan modes.
Specifications| General | |
| Transducer beamwidth | With lens: 12 deg x 120 deg Without lens: 57 deg x 120 deg |
| Transducer cable length | 9.8 feet (3 m) |
| Dimension | 9.1 in x 4.1 in x 2.5 in (23.1 x 10.4 x 6.4 cm) |
| Weight | 2.60 lbs (1.18 kg) |
| Temperature range | Operating: 0 deg C to 40 deg C |
| Electrical Features | |
| Power input | 10-32 V |
| Fuse | 4A |
| Sonar Features | |
| Frequency | 417 kHz |
| Transmit power | 48 W |
| Maximum depth | 300 feet |
| Connections | |
| Garmin Marine Network Ports | 1 (standard connector) |
| Sonar Modes | |
| LiveVü Down | Yes |
| LiveVü Forward | Yes |
| Traditional sonar source | Yes |
What's in the Box:
- Panoptix PS22-IF transducer
- Transducer rotator and bracket
- Removable lens
- Hardware
- Documentation
GAR0100194510
model_number: 010-01945-10
Specifications
Specifications
| Brand | Garmin |
|---|---|
| UPC / Barcode | 753759340223 |
