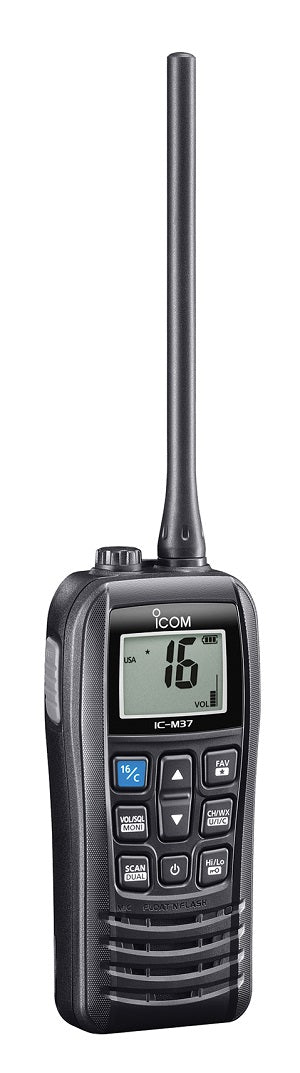

Icom M37 Hand Held VHF 6 Watt Floating
Icom M37 Hand Held VHF 6 Watt Floating
Description
Icom M37 Hand Held VHF 6 Watt Floating
Model: M37 31 USA- Float'n Flash function
- 700mW audio output
- Low battery alert function
- Dual/Tri-Watch function
- Instant access to channel 16 and the Call channel
- Weather channels with weather alert function
Designed for commercial and recreational boaters, the M37 comes with 6 watts of power for further communications range. The M37 includes all the great features in the M36, plus Icom's exclusive Float'n Flash and a larger capacity standard battery.
The M37 is the perfect size and has an easy-to-grip design with large keys. A bigger LCD screen shows large channel numbers and status icons for easy readability.
Icom is proud to include the channel history function in an entry level marine handheld. This feature stores the last five channels used for easy recall at the press of a single button.
Specifications| Frequency Range | |
| Tx | 156.025-157.425 MHz |
| Rx | 156.050-163.275 MHz |
| Usable channels | INT, USA, CAN, WX channels |
| Current drain (at 7.4V DC) | |
| Tx (6.0 W/1.0 W output) | 2.75 A/1.0 A |
| Rx (Max. audio. Inter SP/Exter SP) | 0.4 A/0.2 A |
| Operating temperature range | -20 degC to +60 degC; -4 degF to +140 degF |
| Antenna Impedance | 50? |
| (Projections not included) | 2.4 × 5.5 × 1.5 in (with BP-296) |
| Weight (approx.) | 293 g, 10.3 oz (with BP-296, antenna and belt clip) |
| Output power (Hi/Low) | 6W (High),1W (Low) |
| Max. frequency deviation | ± 5 kHz |
| Frequency stability | ±10 ppm |
| Spurious emissions | -68d Bc typical |
| Sensitivity (at 12dB SINAD) | 6W (High),1W (Low) |
| Max. frequency deviation | ± 5 kHz |
| Frequency stability | ±10 ppm |
| Spurious emissions | -68d Bc typical |
| Sensitivity (at 12dB SINAD) | 0.25 μV typical |
| Squelch sensitivity (Threshold) | 0.25 μV typical |
| Adjacent Channel Selectivity | 70dB typical |
| Spurious response | 70dB typical |
| Intermodulation | 70dB typical |
| Hum and noise | 40dB typical |
| Audio output power (at 10% distortion) | |
| Internal speaker | 0.7 W typical (8 ? load) |
| External speaker | 0.3 W typical (8 ? load) |
| Ingress Protection Standard | |
| Water | IP57 dust protection and waterproof protection (1 m depth of water for 30 minutes) |
| Dimensions | 59.7 × 140.5 × 38.7 mm |
What's in the Box:
- M37 Radio
- BP-296 battery pack
- BC-217SA/SE* AC adapter
- MB-133 belt clip
- BC-235 desktop charger
- FA-SC59V antenna
- Hand strap
ICOM3731USA
model_number: M37 31 USA
Specifications
Specifications
| Brand | Icom |
|---|---|
| UPC / Barcode | 731797037695 |
