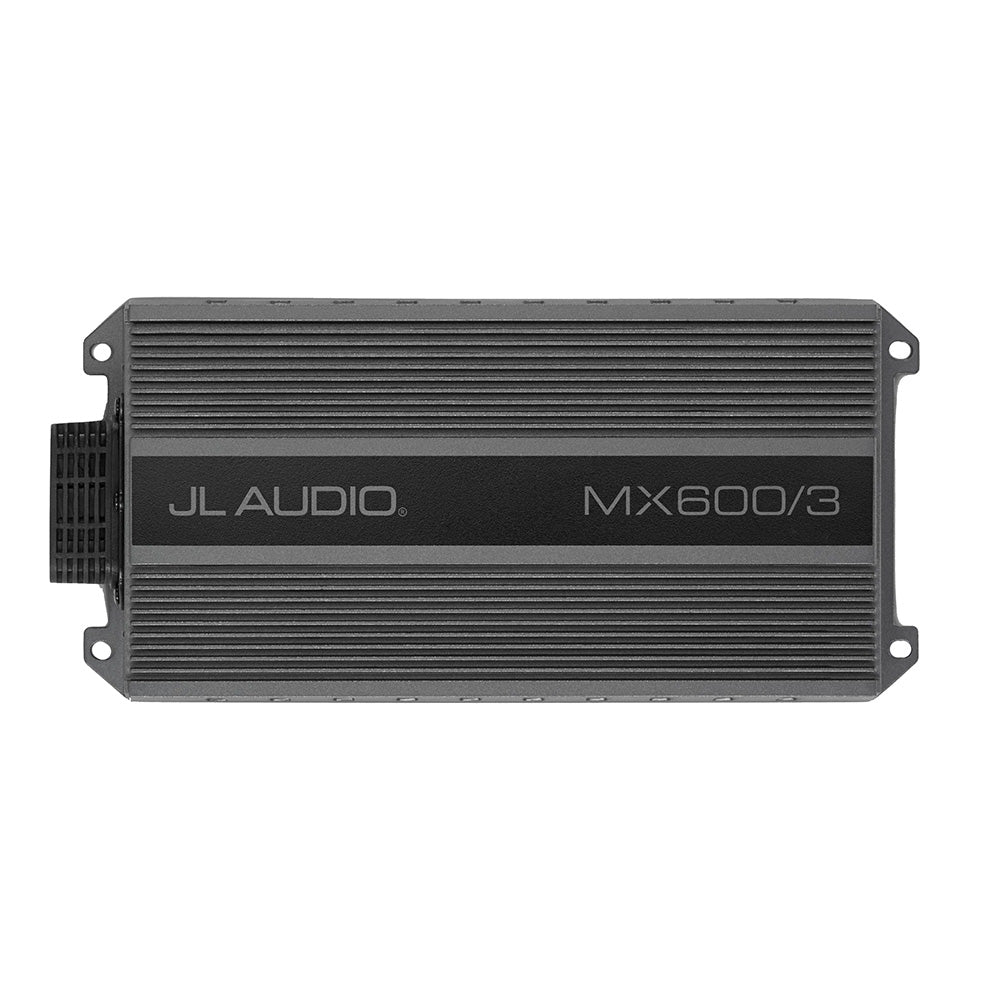

JL Audio MX Series 600w 3 Channel Amplifier - MX600/3

MX Series 600w 3 Channel Amplifier - MX600/3

PLAY ANYWHERE

With efficient NexD™ technology and a water-resistant chassis, MX amplifiers produce loads of clean power and are ideal for applications where moisture cannot be completely avoided.

• Designed for limited space applications
• Shock-resistant, water-resistant and built tough
• Efficient design for high output uses less energy
• Complete signal processing sections on board
• Exceeds international standards for salt fog and UV exposure
• 3-Year warranty

Power To Go Anywhere

Housed in a tiny cast-aluminum chassis, MX amps are rugged, water-resistant (IPX7-rated) and ready to go where conventional amplifiers wouldn’t dare.

NEXD Advantage

The highly efficient Class-D design reduces current draw and heat while generating loads of high-fidelity sound without straining small charging systems.

Complete Signal Processing

For easy setup and system flexibility, a complete set of onboard filters and signal processing features is concealed behind every MX amplifier’s water-resistant control cover.

Differential-Balanced Inputs

A versatile design accepts speaker level signals without a line-output converter - and delivers outstanding noise rejection while preventing alternator whine and other noises.

Built for the Elements

The all-aluminum, powder-coated housing with marine-grade hardware inhibits corrosion, and a water-resistant security cover protects all controls from the harshest of seasons.

Specifications

General

• Warranty: 3 Years
• Channels: 3
• Height: 1.77"
• Width: 9.33"
• Depth: 4.5"
• Weight: 3.18 lbs
• Operating Voltage: 11-15 vdc
• Water and Dust Rating: IPX7

Audio

• Amplifier Class: D
• RMS @ 4 OHM: Main: 75 W x 2/Sub: 250 W x 1
• RMS @ 2 OHM: Main: 50 W x 2/Sub: 200 W x 1
• Fuse Rating: 60A
• Recommended Fuse Types: AFS, AGU or MaxiFuse™
• Min. Copper Power/Ground Wire Gauge: 4 awg

Specifications

• Watts: 600w

Manufacturer Part #: 010-03326-00
