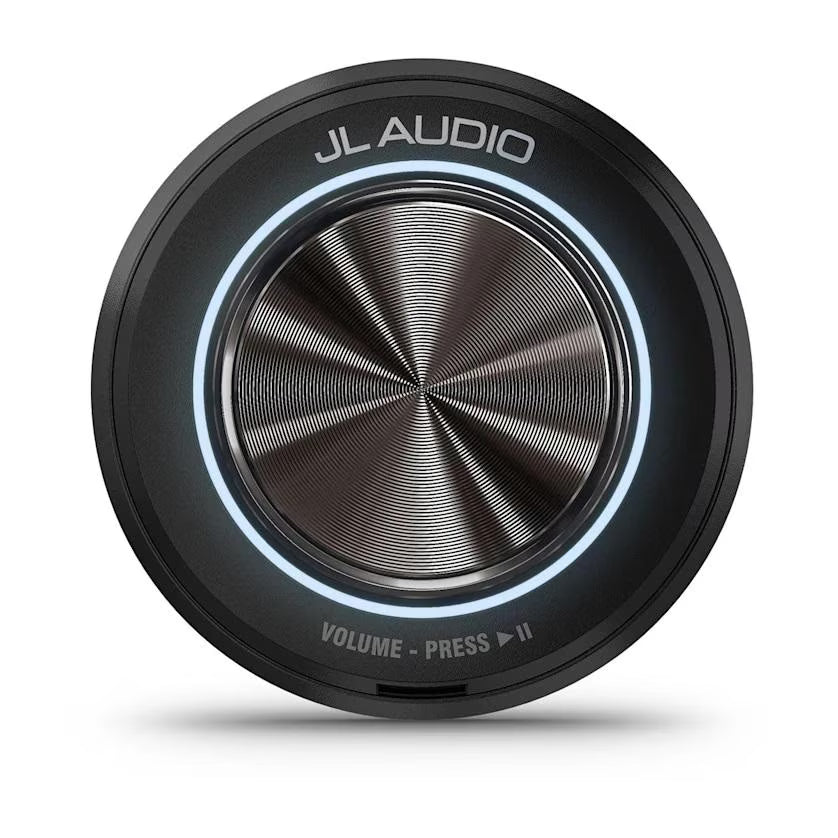

JL Audio R5 Single Stereo Volume Controller
Checkout rates for this item at the selected quantity.
JL Audio R5 Single Stereo Volume Controller
Description
JL Audio R5 Single Stereo Volume Controller
Model: 010-04790-00
- LARGE SINGLE-KNOB CONTROL
- CONNECTS TO YOUR BOAT’S NMEA 2000® NETWORK
- ADJUSTS ALL AUDIO ZONES OF A SINGLE HEAD UNIT
- PLAY OR PAUSE WITH THE PUSH OF A BUTTON
- REQUIRES SINGLE 1.5-INCH HOLE FOR INSTALLATION
- IPX7-RATED FOR MARINE ENVIRONMENTS
This easy-to-use volume controller can be front mounted on your boat’s dash, and it controls all audio zones of a single head unit via a large single knob.
Specifications
| General | |
| Warranty | 1 year |
| Physical dimensions (Height) | 2.35" (60 mm) |
| Physical dimensions (Width) | 2.35" (60 mm) |
| Physical dimensions (Depth) | 2.04" (52 mm) |
| Control surface dust/water rating (when properly installed) | IPX7 |
| Operating temperature range | 32° F to 122° F (0° C to 50° C) |
| Current draw (max) | 110 mA |
| Electrical Features | |
| Power Input | 10.8-16 VDC |
| Compass-safe distance | 3.94" (100 mm) |
| Networking & Connections | |
| NMEA 2000® ports | 1 (Micro-C connector) |
| NMEA 2000® LEN | 2 (100 mA) |
What's in the Box:
- JL Audio R5 single stereo volume controller
- T-connector for the NMEA 2000® network
- Two screws
- Documentation
JLA0100479000
model_number: 010-04790-00
Specifications
Specifications
| Brand | JL Audio |
|---|---|
| Category | Stereo - Accessories |
| UPC / Barcode | 753759380113 |
| Weight | 0.4 lb |
