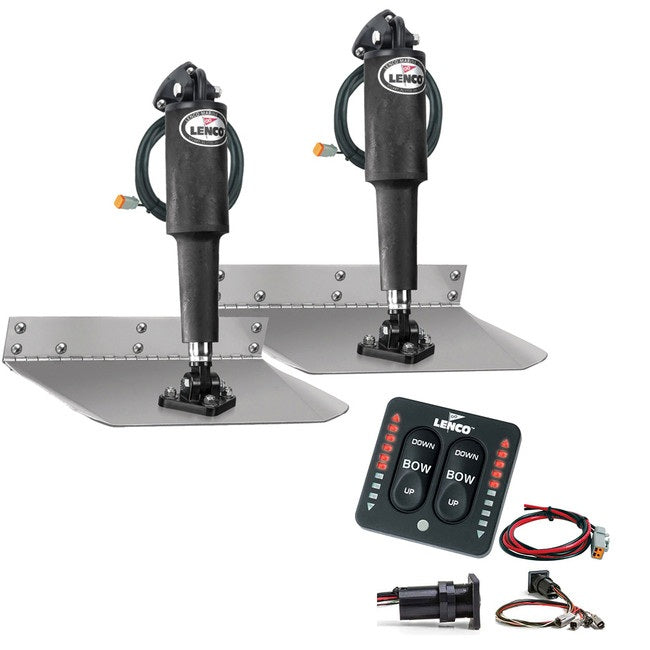

Lenco 9inx12in Standard Mount Trim tab Kit 12v LED Integrated Switch

Lenco 9x12" Standard Mount Trim tab Kit 12v with LED Integrated Switch

Everything you need in one box! The Standard trim tab kit with the added benefit of having the NEW integrated switch choice & power connector all included. Boat lengths 16 feet (4.9 m) to 30 feet (9.1 m). Blades are constructed of 12 gauge (2.7 mm) laser cut 304 stainless steel with a 5/8 in (1.6 cm) flared trailing edge & 1/8 in (3.2 mm) diameter hinge pin. Upper and lower high impact corrosion proof mounting brackets with mechanical cable gland seal. Switch included.

• (2) 12-gauge stainless steel standard finish blades
• (2) 15054-001 actuators with 6 feet (1.8 m) leads and Deutsch connectors
• (2) 30133-103 actuator extension wiring harnesses - 20 feet (6.1 m) length
• (2) 15085-001 upper mounting brackets with gland seal
• (2) 50014-001 lower mounting brackets
• Lenco owner's/installation manual
• Stainless steel mounting hardware
• LED Integrated Switch
"

LEN15108103
model_number: 15108-103
