Lewmar

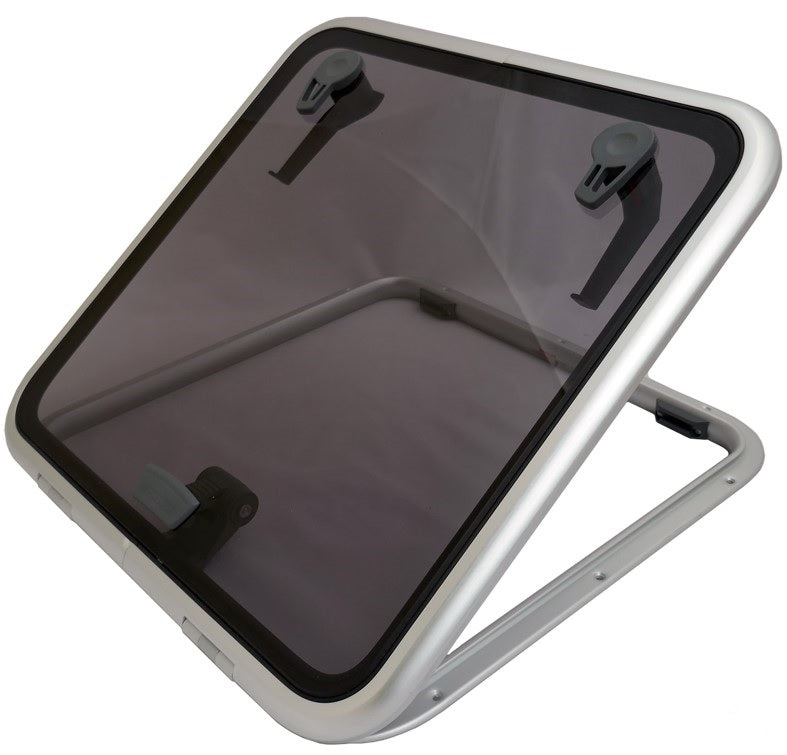

Lewmar Size 60 Low Profile Hatch Flange Base
$995.95
Save $-995.95
Support System Lower Frame (in) Acrylic Colour Hatch Weight (lb) Acrylic Window Thickness (in) Self Supporting 9/16 Smoke Grey 14.1 5/16 Dimensions
Free expert assistance · (609) 884-0330
30-day easy returns · Free in-store pickup at both Cape May locations
Description
| Support System | Lower Frame (in) | Acrylic Colour | Hatch Weight (lb) | Acrylic Window Thickness (in) |
| Self Supporting | 9/16 | Smoke Grey | 14.1 | 5/16 |
Dimensions
| Length X (in) | Width Y (in) | Height Z (in) | Radii R (in) | Cut-Out Length X1 (in) | Cut-Out Width Y1 (in) | Cut-Out Radii R1 (in) |
| 22 11/16 | 22 11/16 | 1 | 2 7/8 | 19 15/16 | 19 15/16 | 1 11/16 |
Mounting Instructions
Fit to a flat surface with a maximum tolerance of +/- 1mm. Fastening size at hinge section use M6 (1/4 in). Fastening size for lower frame use 5mm CSK screw No.10 UNC 2 BA.
LEW39960030
model_number: 39960030
Specifications
Specifications
| Brand | Lewmar |
|---|---|
| Category | Hatches LP |
| UPC / Barcode | 743683107221 |
