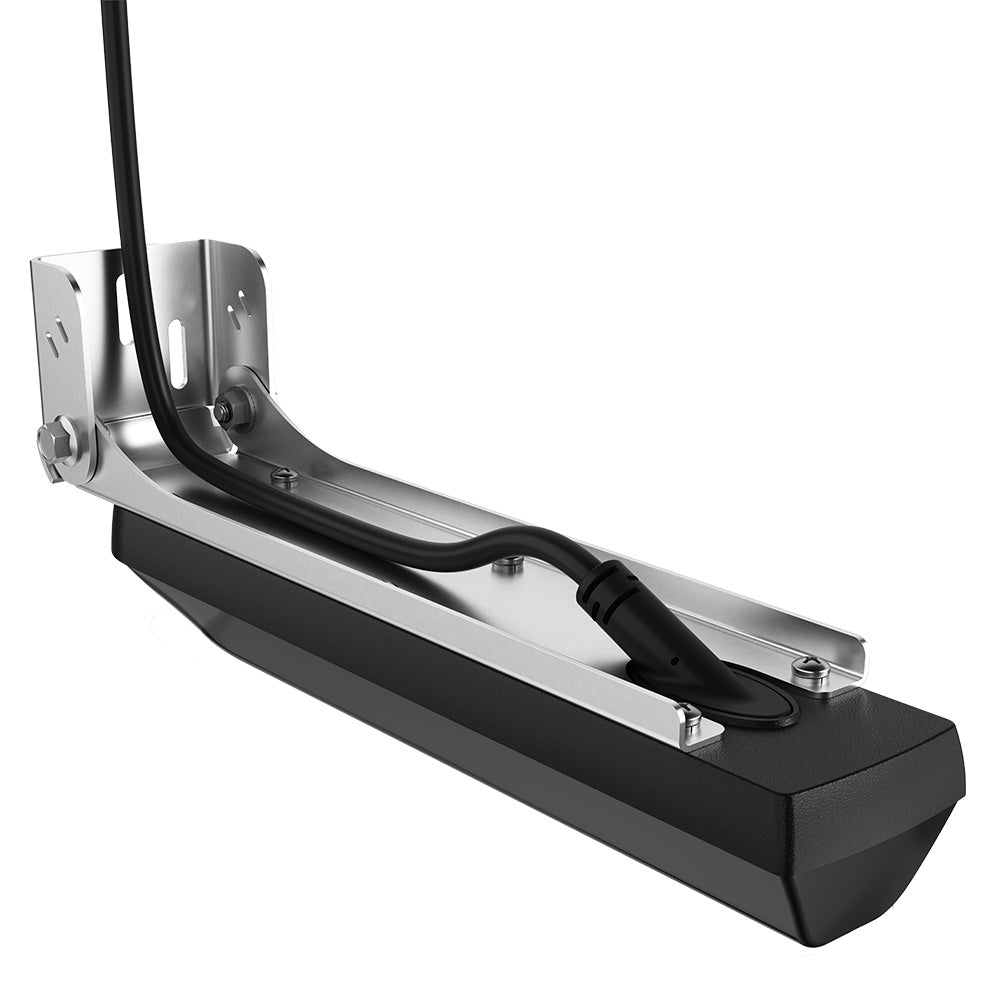

Lowrance Active Imaging HD™ 2-in-1 Transducer

Active Imaging HD™ 2-in-1 Transducer

Step up to the ultimate fishfinding clarity with new, high-definition Active Imaging™ HD 2-in-1 sonar. Get the most precise images of fish and structure from high-frequency (up to 1.2MHz) SideScan and DownScan Imaging™, plus a FishReveal™ DownScan view that makes fish easier to see below the boat.

Features:

• High frequency (up to 1.2MHz) SideScan and DownScan Imaging deliver the most precise images of fish and structure
• FishReveal™ DownScan view makes fish identification easy
• Supports 455/800kHz and 455/1.2MHz frequencies
• The perfect complement for a factory-installed CHIRP transducer
• Smart transducer design boosts signal clarity
• Compatible directly with Lowrance HDS PRO or with an S3100 module with HDS LIVE, HDS Carbon en Elite FS

Specifications

• Cable Length (Feet): 25'
• Chirp: No
• Imaging: Down/Side
• Mounting Style: Transom
• Pins: 9
• Speed Included: No
• Temperature: Yes

Manufacturer Part #: 000-16063-001
