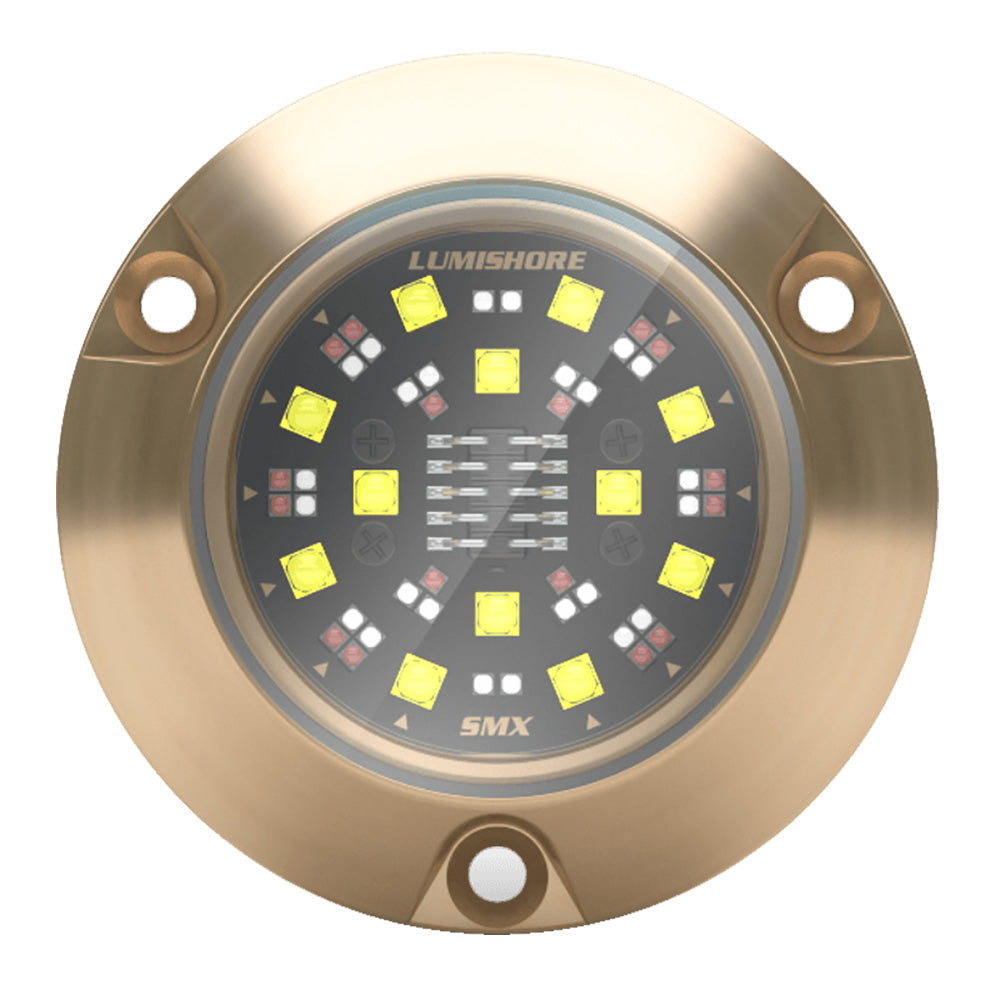

Lumishore ECLIPSE SMX94 Single Surface Mount Underwater Light

ECLIPSE SMX94 Single Surface Mount Underwater Light

As well as efficiency and performance, the SMX94 is unmatched in ease of installation due to its built-in driver and simple 2-wire connections.

Enjoy full-spectrum RGBW color change lighting that packs a powerful 6,000 fixture lumens into a wide 90° beam.

Control the SMX94 with a standard on/off switch to cycle through colors; toggle to pause on any color in the spectrum or the ECLIPSE Command Center.

Suitable for stepped hulls, transoms, and hull side installations.

Specifications:

• Available Colors: Full Spectrum RGBW Color Change
• Lumens: 13,500
• Fixture Lumens (White): 6,000
• Number & Type Of LED: White–12×5W / Green–12×3W / Blue–12×3W / Red–16×3W
• LED Power - HICOB Array: Yes
• Typical LED Life: 50,000+ Hours
• Warranty: 3 Years
• User Control Options: On/Off Switch (Third-party supplied) ECLIPSE Command Center
• Electrical Installation: Simple 2-Wire Connection ECLIPSE Command Center
• Housing Type: Marine Bronze Body with Borosilicate Glass Lens
• Compact Size: Diameter: 70mm (2.75”) Height: 17mm (0.67”)

Specifications

• Color: RGBW
• Material: Bronze
• Mounting Style: Surface
• Voltage - Input Range (Volts): 12/24v

Manufacturer Part #: 010-04506-00
