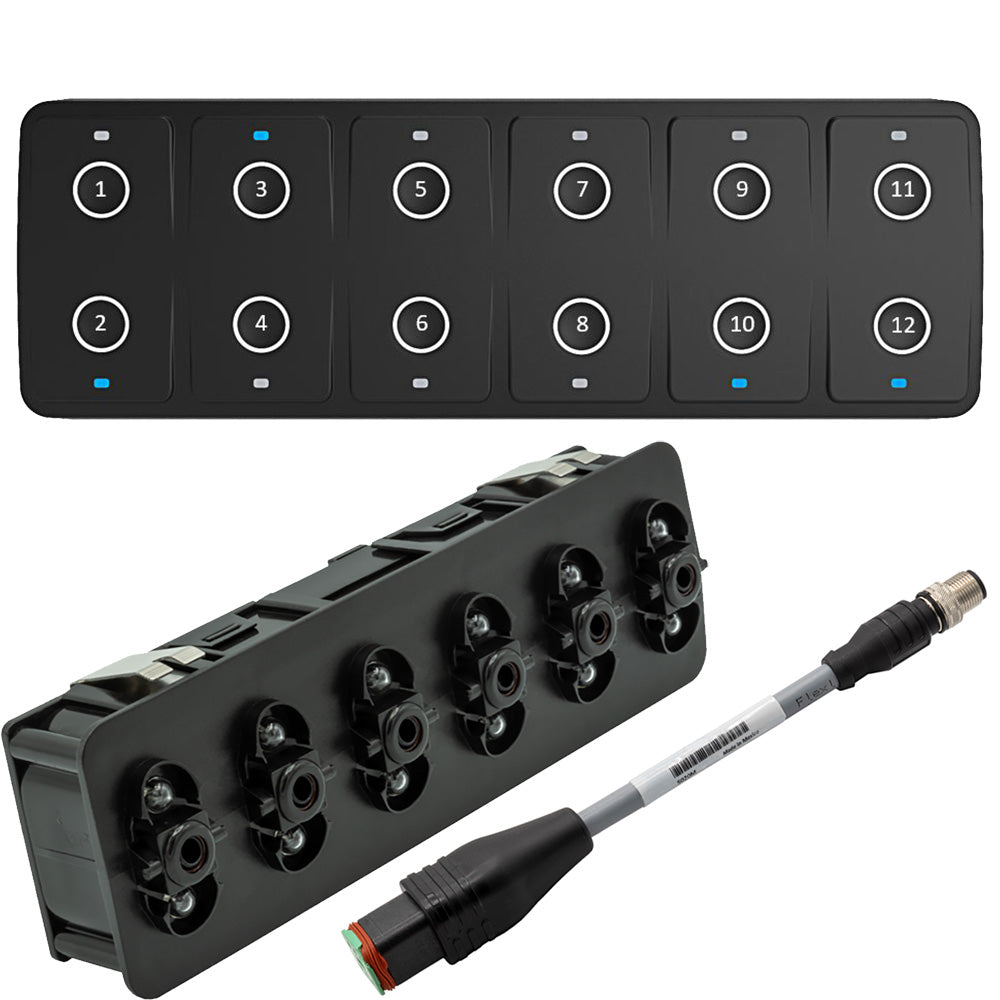

Maretron CKM12 Keypad with CKM to NMEA 2000® Adapter Cable - 0.2M (Horizontal Orientation)

CKM12 Keypad with CKM to NMEA 2000® Adapter Cable - 0.2M (Horizontal Orientation)

The CKM12 is a customizable keypad featuring laser-etched legends and LED function lights for each button. The LEDs also provide diagnostics when fault conditions are detected.

With the rugged mechanical packaging (IP69K), the CKM12 can be installed inside or outside the cabin. The low-profile design offers a seamless dashboard look, and it can be mounted either vertically or horizontally.

The CKM12 offers significant advantages over traditional electromechanical switches, such as a longer actuation cycle (1,000,000), reduced wiring harness, and reduced installation time. The CKM12 is sold off the shelf in two configurations and includes a CKM to NMEA 2000® Adapter Cable.

The CKM12 is sold off the shelf in two configurations of legends. Consult the factory for additional options and minimum quantities for customization.

Features:

• NMEA 2000® CAN Protocol
• IP69K Front Panel Sealing Protection
• Configurable
• Diagnostic Feedback
• Standard or Custom Etched Legends
• 1,000,000+ Button Actuation Cycles.
• Low Current Switching
• Tactile and Audible Feedback
• Number in center of circle on buttons

Applications:

• The dimmable button switches on the CKM12 are programmable to control any Maretron digital switching loads
• Can be paired with third-party systems using the NMEA 2000 standard PGN 127501 Binary Status Report

Manufacturer Part #: A3802-2
