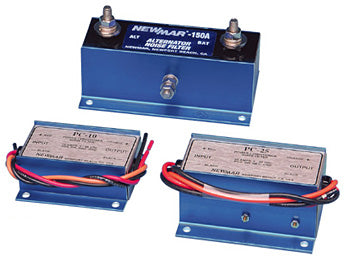

Newmar 150-A Alternator Filter

Noise Filters
The interference or electronic "noise" generated by alternators, ignition systems, motors, etc., can render a vehicle or vessel's radio or other electronic equipment virtually useless. This interference takes the form of popping or static on radios or audio gear and garbled images or "hash" on video displays.

These specialized filters can be used singly or in combination to attenuate conducted line noise, either at the affected equipment or at the noise source.

Filtered Frequencies

• Model 150A: 70 kHz - 100 MHz
• Models PC-10 and PC-25: Audio - 200 MHz

Filter Features:

• Heavy duty aluminum construction
• Operate on 6-48 VDC systems
• Integral mounting flanges for secure installation
• Brass stud connectors on alternator filters accommodate high current cables and terminals
• Color coded wire leads on all other models make in-line installation easy

150-A PC-25 <tr height="12 in>

Size		H	W	D
In the alternator output lead	3.25 in	5.75 in	3.25 in	3 lbs.
10 Amp		(3.2	10.8	8.2cm	.5Kg.)
Same as PC-10	2 in	4.25 in	3.25 in	2 lbs.
(5.1	10.8	8.2cm	.9 Kg.)

NEW150A
model_number: 150-A
