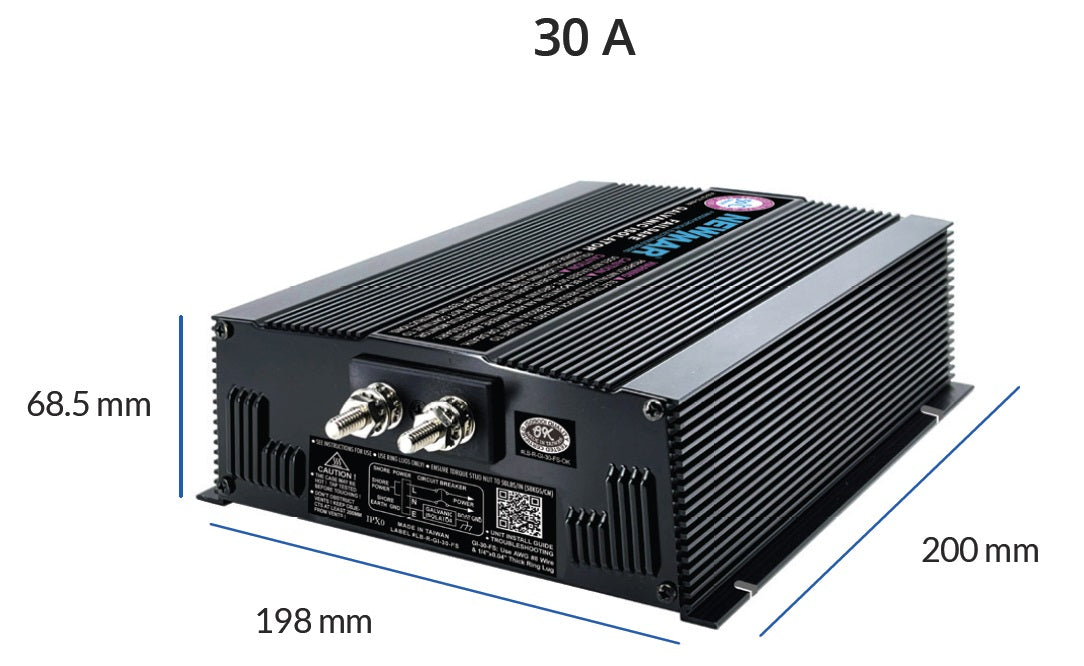

Newmar GI-30-FS 30AGalvanic Isolator with Fail Safe

Newmaqr 30 Amp Galvanic Isolator with Fail Safe

• Commonly installed on cruisers, sailboats, and yachts
• Protects against corrosion
• Maintains a safe environment
• Certified to UL1500 standard for Ignition Protection
• Tested to 50 degC ambient temperature
• The fail-safe feature ensures ground maintenance
• Connection in the event of isolator failure

Sacrificial zincs corrode away as they protect metal through hulls, shafts, and props from damaging electrolysis. Stray, low-voltage current flowing between the AC safety ground and DC bonding system is a principal cause of this"galvanic" action.

Installing the Galvanic Isolator between the AC safety ground and DC bonding system blocks most of the low voltage currents and corrosive action on the zincs is significantly reduced (while the integrity of the critical safety ground path is maintained.) This means a significant saving in boat haul-out fees and zinc replacement costs. For additional safety, all units feature a large capacitor, providing a secondary low-impedance path for sending AC current to the ground.

Newmar's latest galvanic isolator meets the latest ABYC A-28 2019 including being failsafe. This new design can meet the strictest temperature and current tests to create a robust solution for galvanic protection.

NEWGI30FS
model_number: GI-30-FS
