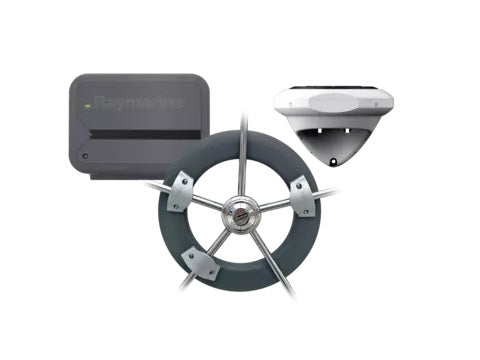

Raymarine EV100 Sailboat Wheel Pilot without Control

Raymarine EV-100 Wheel Pilot with p70Rs Control

Model: T70152


• Rated for wheel-steered sailboats up to 16,500 lbs (7,500kg) displacement
• Designed for cockpit installations.
• SeaTalkNG/NMEA2000 for networking with sailing instruments and chartplotters
• Requires no complicated setup or autopilot calibration.
• Includes the EV-1 sensor core. An intelligent 9-axis heading sensor that uses aerospace guidance technology to adapt and evolve to changing sea conditions and vessel dynamics

The EV-100 Wheel Pilot is a complete autopilot solution for wheel-steered sailboats. Designed for do-it-yourself installations, the EV-100 Wheel Pilot's externally mounted drive mounts in the cockpit, attached directly to the spokes of the boat's steering wheel. The EV-100 Wheel Pilot delivers precision autopilot control using the intelligent EV-1 sensor core and the ACU-100 actuator control unit.

What's in the Box:

• E12093 Wheel Drive
• E70098 ACU-100
• E70096 EV1 Sensor Core
• R70160 Cabling Kit

RAYT70248
model_number: T70248
