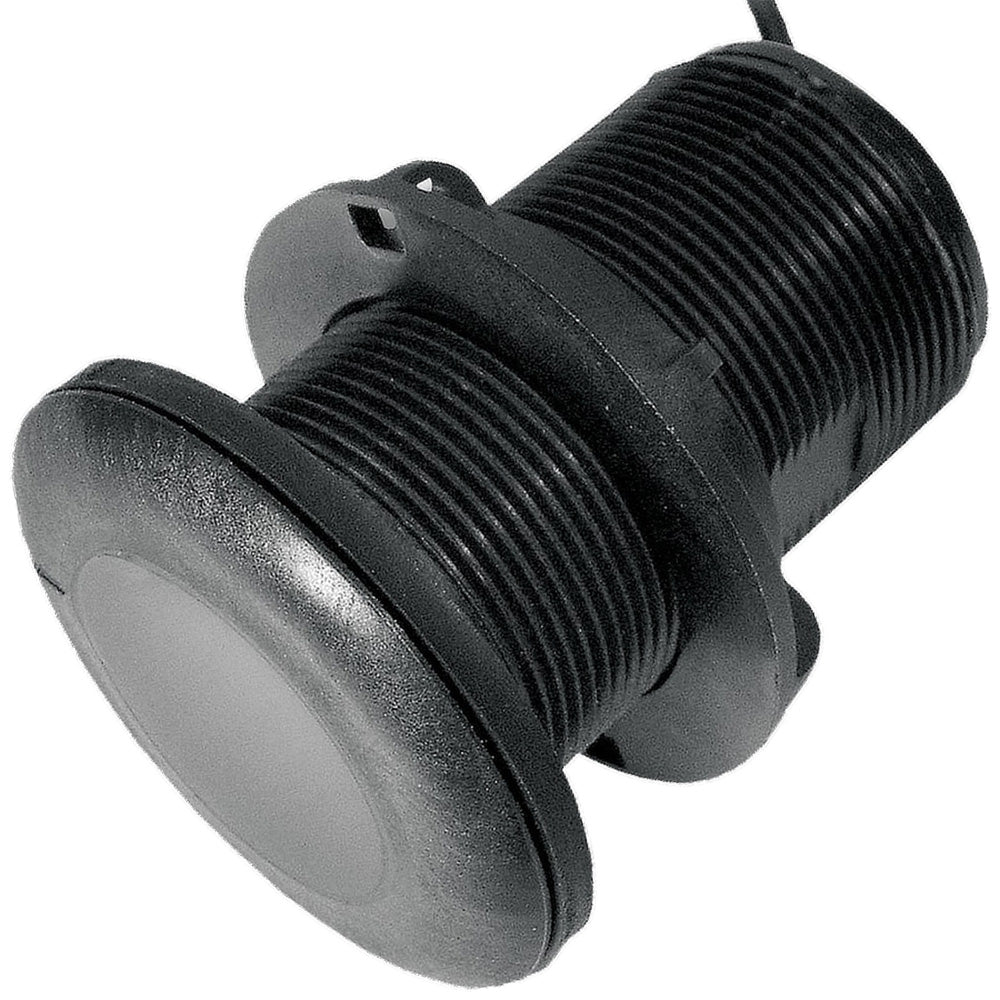

Airmar P319 Plastic Thru Hull Depth & Temperature Transducer - 600W- 50/200kHz - Requires Mix & Match™ Cable

P319 Plastic Thru Hull Depth & Temperature Transducer - 600W- 50/200kHz - Requires Mix & Match™ Cable

Airmar’s entry-level P319 features a single, 50/200 kHz, dual-frequency, ceramic element in a low-profile, plastic housing. The nearly flush design minimizes drag with only 5 mm (3/16") extending outside of the hull.

Features:

• Requires Mix & Match™ Cable for the Fishfinder Unit
• Cable Length 2M
• Deadrise Range: Best performance through 7°. Can accommodate up to 12°.
• Hole Size: 51 mm (2")
• Usable Shaft Length: 63.5 mm (2.50")
• Depth only or depth and fast-response water-temperature sensing
• 600 W of power
• Dual-frequency element:
• 50 kHz with a wide 45° beamwidth for depth performance to 366 m (1200')
• 200 kHz with a 12° beamwidth for depth performance to 213 m (700')
• Right-angle cable exit saves space and protects the transducer if stepped on
• An included rubber washer allows tightening of the hull nut to irregular hull surfaces
• Low-profile housing has minimum drag
• Plastic housing is ABYC H-27 compliant

Specifications

• Cable Length (Feet): 3'
• Chirp: No
• Imaging: Standard
• Mounting Style: Thru-Hull
• Pins: 5
• Speed Included: No
• Temperature: Yes

Manufacturer Part #: P319-DT-MM
