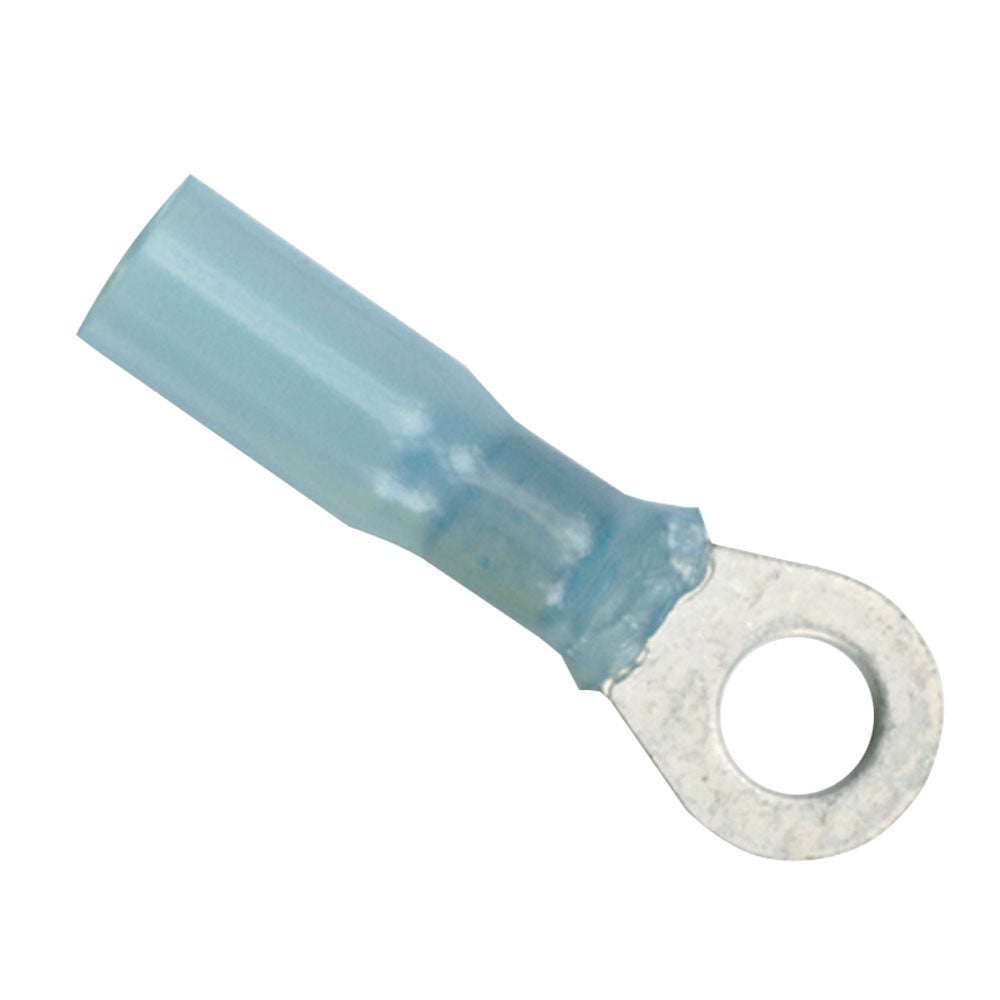

Ancor 16-14 Gauge - #8 Heat Shrink Ring Terminal - 100-Pack
$53.09
Save $-53.09
16-14 Gauge - #8 Heat Shrink Ring Terminal - 100-PackGauge Size: 16-14Screw Size: #8Quantity: 100Features: Cross Linked polyolefin tubing is much stronger than PVC tubing and will not...
Free expert assistance · (609) 884-0330
30-day easy returns
Description
16-14 Gauge - #8 Heat Shrink Ring Terminal - 100-Pack
Gauge Size: 16-14
Screw Size: #8
Quantity: 100
Features:
Gauge Size: 16-14
Screw Size: #8
Quantity: 100
Features:
- Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC.
- Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief.
- Nylon insulator, preferred by experts, for Marine Grade resistance to sunlight, water, oil, chemicals, vibration and cut-through damage.
- UL Listed and CSA Recognized
- Highest shrink ratio - shrinks to 1/3 original size.
- Shrinks at 257 deg. F/125 deg. C.
- Operating temperature range 40 deg. C to 110 deg. C.
- ANCOR heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing
- Shrinks to form a water tight seal and the ultimate vibration and strain relief.
- Tinned for corrosion resistance.
- Pure copper for maximum current flow.
- Brazed seam for maximum strength.
- Wire Range: 16-14
- mm: 1-2
- Gauge: 16-14 AWG
- Type: Ring Terminals
- Package Qty: 100
- Heat Shrink: Yes
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications
Manufacturer Part #: 311299
Specifications
Specifications
| Brand | Ancor |
|---|---|
| Category | Terminals |
| UPC / Barcode | 91887313062 |
