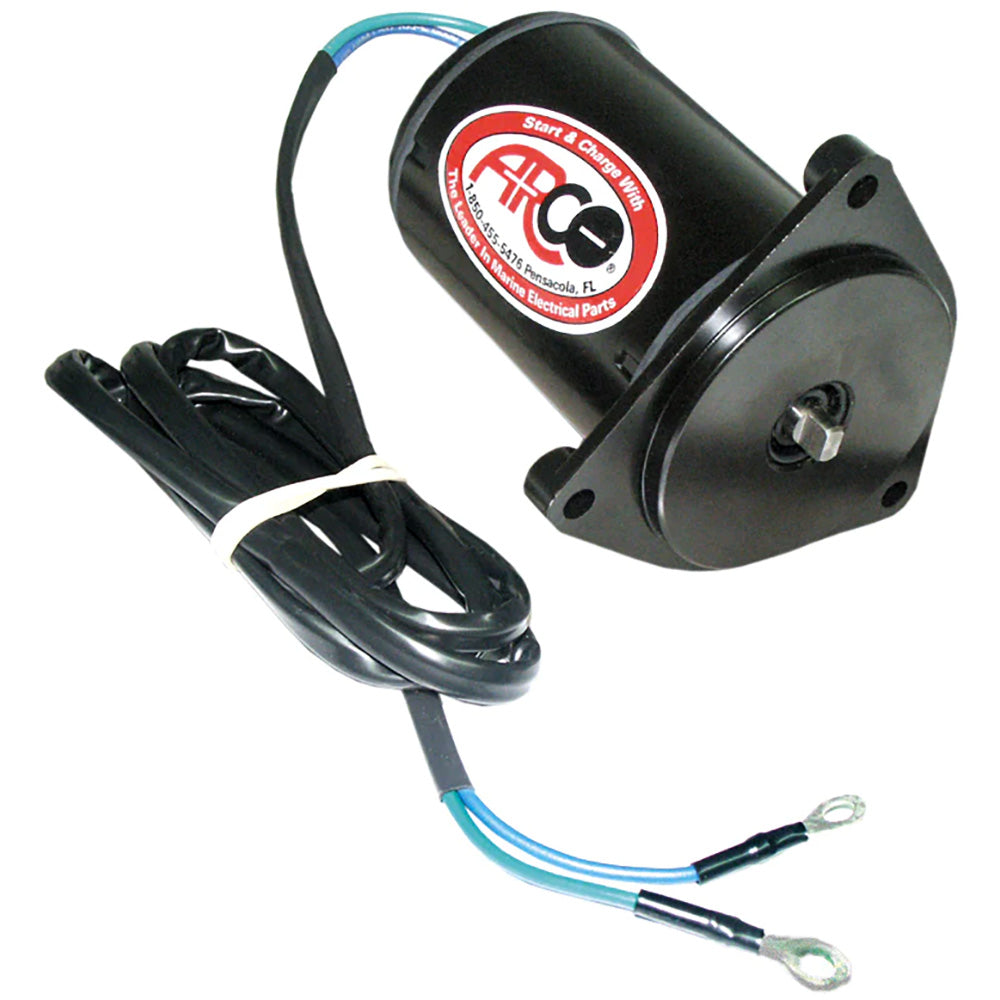

ARCO Marine Replacement Outboard Tilt Trim Motor - Yamaha, 2-Wire, 3 Bolt, Flat Blade Shaft

Replacement Outboard Tilt Trim Motor - Yamaha, 2-Wire, 3 Bolt, Flat Blade Shaft

Replacement outboard tilt trim motor that will fit Yamaha 1992-2002 90 HP, 1992-1995 50-90 HP, 1994 40 HP, 1996 70-90 HP, 1997-Up 60, 70, 90 HP, 2-wire connection, 3-bolt mount, Includes O-ring, Flat-blade shaft, Ring Terminal Ends.

ARCO advises cleaning all connections: A corroded connection creates resistance, lowering the amperage required to operate the motor.

Features:

• Tilt trim motors are dynamically tested to ensure out-of-the-box performance
• Motor shafts induction case hardened at bearing surfaces for superior wear resistance
• Epoxy Powder coated for maximum insulation protection

Warranty Information:

When properly installed, all ARCO products are warrantied against defects in materials and workmanship for a period of 12 months for leisure use and 90 days for commercial or racing applications.

Add an extra year of warranty to your rotating electric ARCO product (Tilt/Trim Motors, Alternators, Outboard Starters, and Inboard Starters) when you register your product within 30 days of purchase. You can register your product by visiting arcomarine.com/product-registration

Replaces:

YAMAHA Tilt Trim Motor 6H1-43880-02
SIERRA Tilt Trim Motor 18-6781

Manufacturer Part #: 6260
