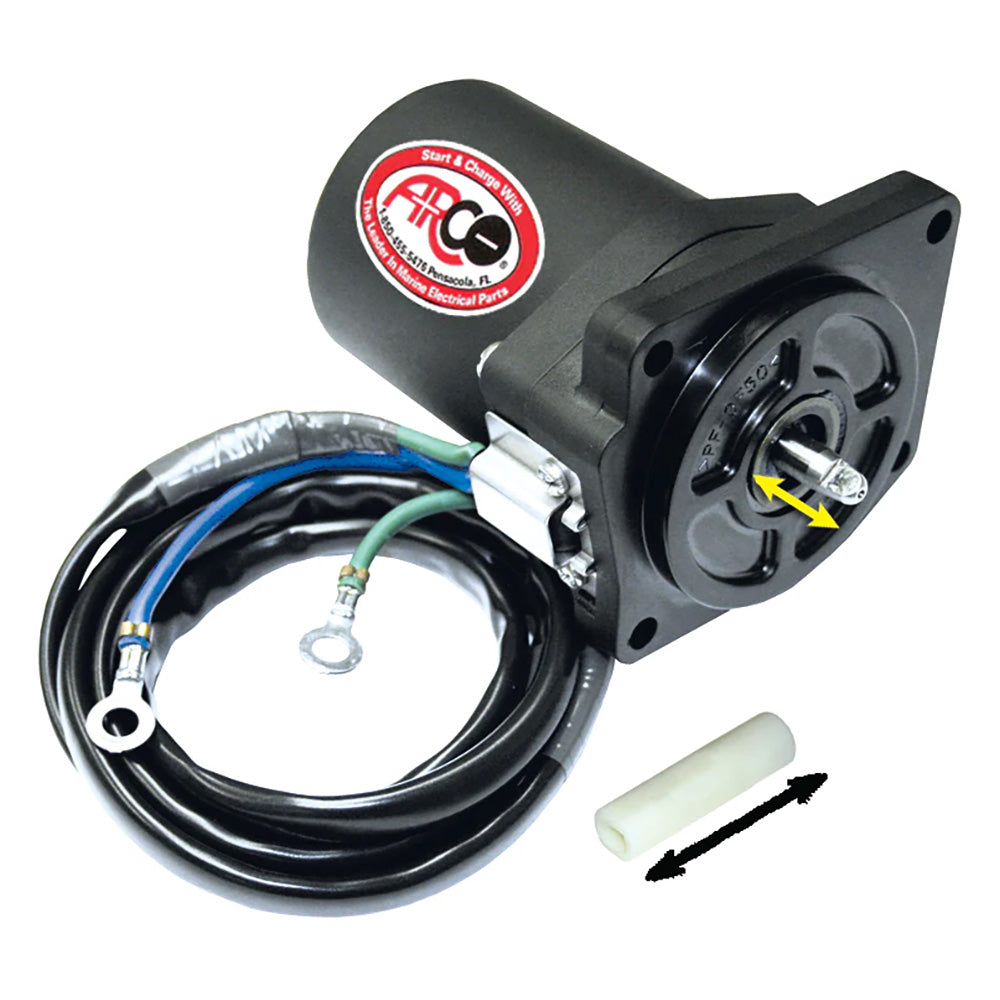

ARCO Marine Replacement Outboard Tilt Trim Motor - Yamaha-4 Bolt, 5/8" Flat Blade Shaft

Replacement Outboard Tilt Trim Motor - Yamaha-4 Bolt, 5/8" Flat Blade Shaft

Replacement outboard tilt trim motor that will fit Yamaha 2005-UP 75 HP 4 Stroke, 2005-UP 90 HP 4 Stroke, 2-wire connection, 4-bolt mount, Includes O-ring & Coupler, Ring Terminal Ends.

ARCO advises cleaning all connections: A corroded connection creates resistance, lowering the amperage required to operate the motor.

Features:

• Tilt trim motors are dynamically tested to ensure out-of-the-box performance
• Motor shafts induction case hardened at bearing surfaces for superior wear resistance
• Epoxy Powder coated for maximum insulation protection

Warranty Information:

When properly installed, all ARCO products are warrantied against defects in materials and workmanship for a period of 12 months for leisure use and 90 days for commercial or racing applications.

Add an extra year of warranty to your rotating electric ARCO product (Tilt/Trim Motors, Alternators, Outboard Starters, and Inboard Starters) when you register your product within 30 days of purchase. You can register your product by visiting arcomarine.com/product-registration

Replaces:

YAMAHA Tilt Trim Motor 6D8-43880-00
YAMAHA Tilt Trim Motor 6D8-43880-01
YAMAHA Tilt Trim Motor 6D8-43880-09

Manufacturer Part #: 6258
