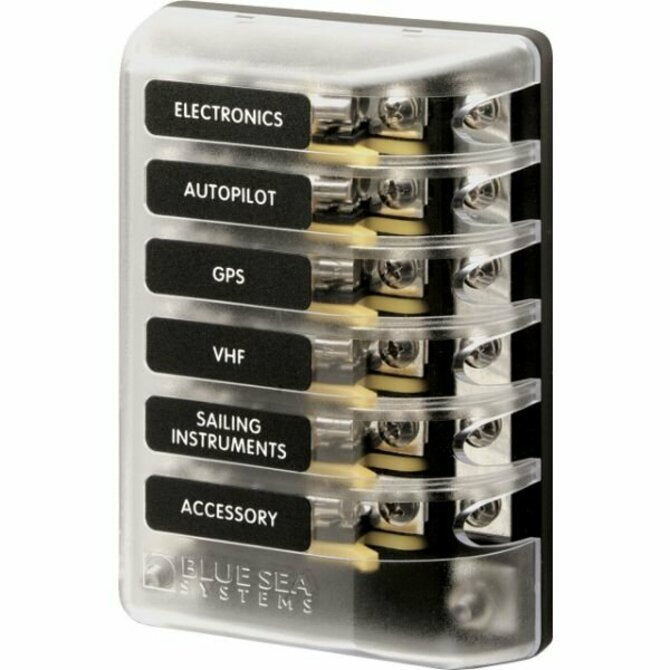

Blue Sea Agc Fuse Block With Negative Bus And Cover
Innovative design allows for labeling, spare fuse storage, and easy fuse removalClear insulating cover with label recesses for accept Large Format LabelsCover insulates all conductive parts, satisfying ABYC/USCG...
Description
Innovative design allows for labeling, spare fuse storage, and easy fuse removal
Clear insulating cover with label recesses for accept Large Format Labels
Cover insulates all conductive parts, satisfying ABYC/USCG requirements and storing spare fuses
Tin-plated copper buses and Phosphor Bronze fuse clips give 30 Ampere rating per circuit
Accepts AGC (Fast Acting), MDL (Time-Delay) and all other 3AG Glass Fuses
Maximum Amperage: 100A per block / 30A per circuit
Maximum Voltage: 32V DC
Mounting: #10 Screw
Negative Bus: Yes
Base Material: Reinforced Polycarbonate
Cover Material: Polycarbonate
Screw Terminal Type: #8-32 with Captive Star Lockwasher
Specifications
Specifications
| Brand | Blue Sea Systems |
|---|---|
| Category | Fuse |
| SKU | BSS-5015 |
| Available circuts | 6 |
