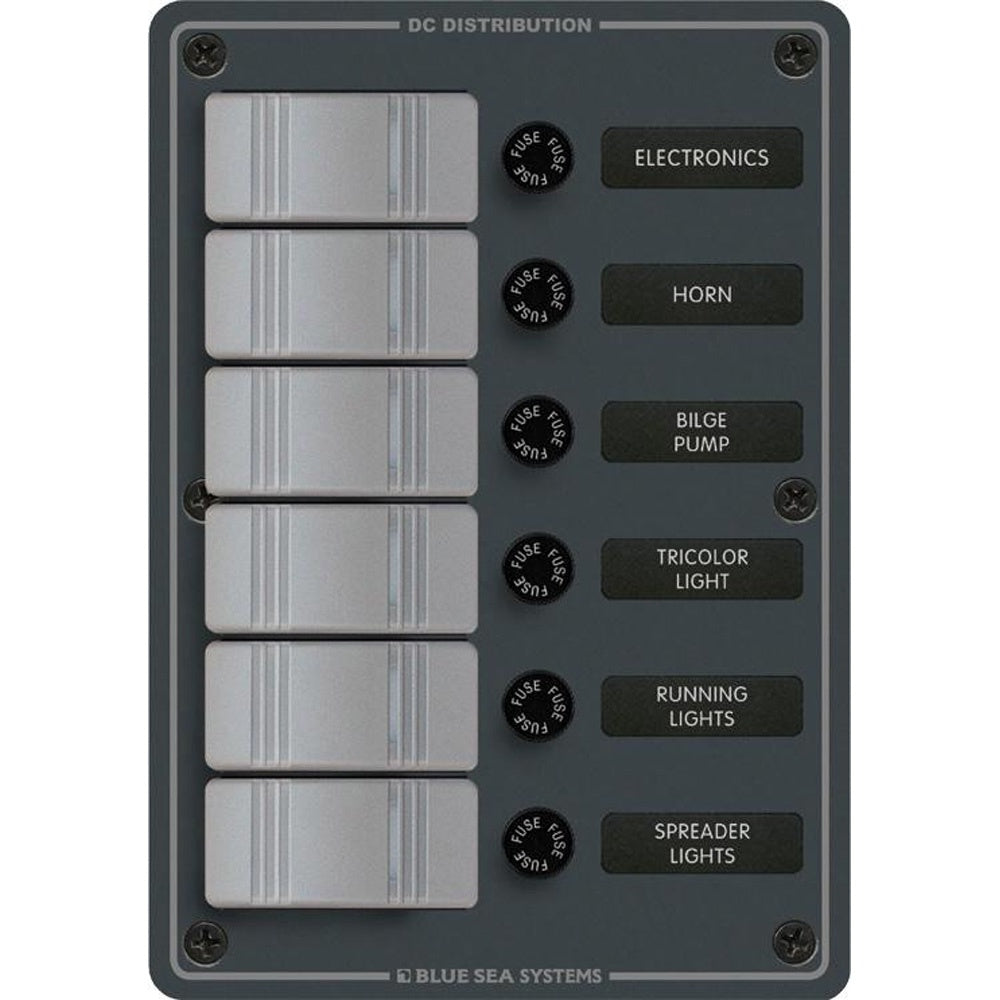

Blue Sea Dc Circuit Verticle Contra Switch Pannel

8053 Slate Grey - 6 Position - Vertical

Features:

• Will withstand the water exposures normally encountered in above deck applications: salt spray, rain, hose washdowns, momentary immersions
• Designed for flybridge and open cockpit applications
• ON-OFF Contura Switches
• ON indicating LEDs embedded in switches
• Watertight mounting gasket included
• Countersunk mounting holes throughout
• Two-part polyurethane slate gray finish
• Industry standard height and width
• Mil-Spec chemical treatment via immersion to protect every surface detail from corrosion
• Completely wired and ready to install

Specifications:

• Weatherproof: Water Resistant
• Positions: 6
• Nominal Voltage: 12v / 24v DC
• Panel Cumulative Rating: 45A
• Switch Rating: 20A @ 12v DC / 15A @ 24v DC
• Height: 7.5"
• Width: 5.25"
• Depth: 3"

Included:

• (6) 5021 Panel Mount AGC/MDL Fuse Holder
• (1) 8030 Basic DC Panel Label Set - 30 Labels
• (6) 8230 Contura Switch SPST Gray - OFF-ON

*NOTE: Waterproof panel labels are not backlit
