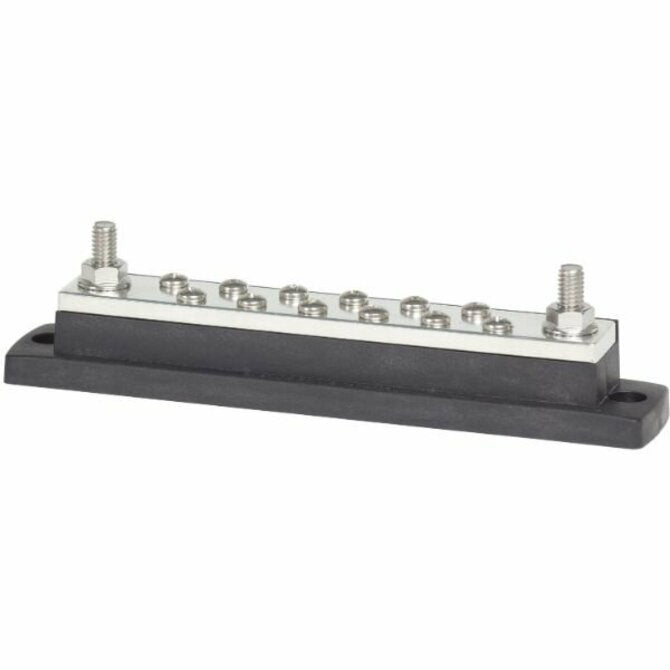

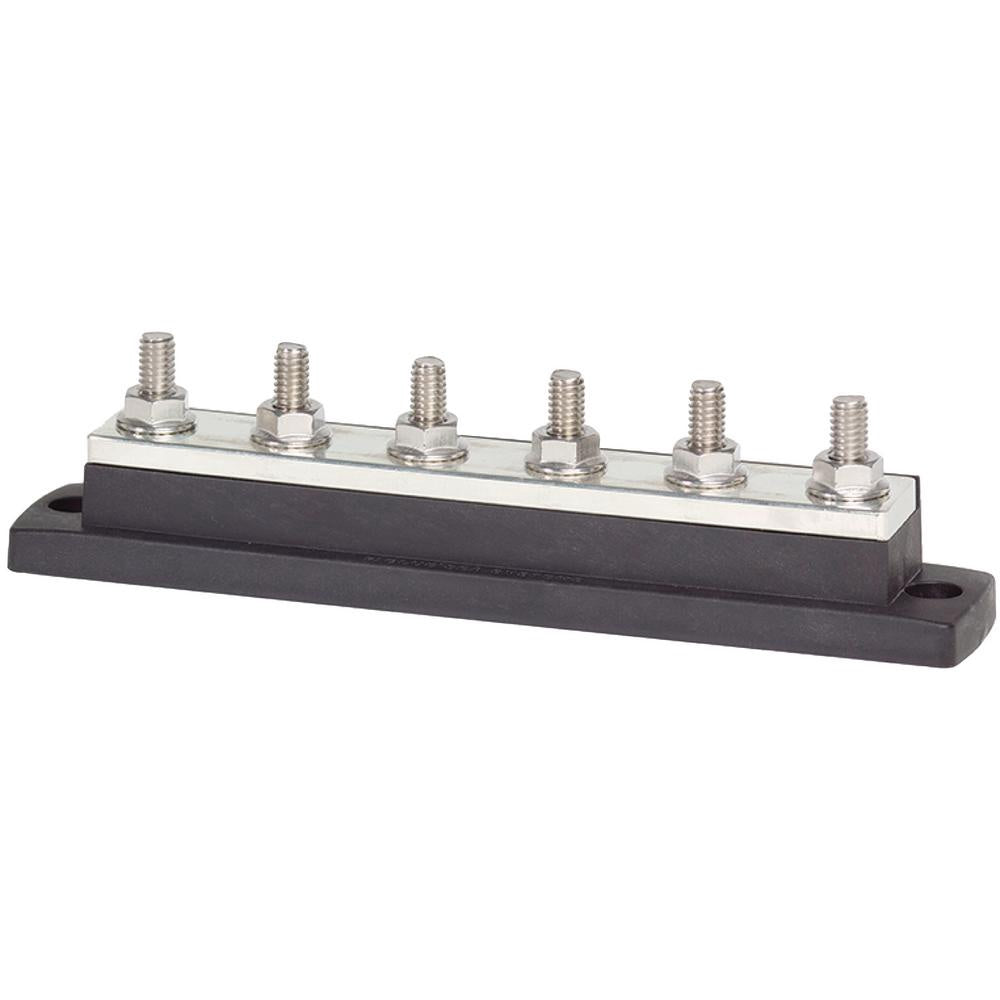

Blue Sea Systems - Maxibus 250A Common Busbar

Busbars are used to consolidate multiple wires or feed multiple circuits
Insert molded stainless steel studs eliminate need for securing nut and allow high torquing for excellent electrical contact
Raised bus provides easy access to multiple wires on a single screw or stud
UL 94-V0 rated base material resists high heat
Recessed mounting holes eliminate accidental shorts to aluminum and steel mounting surfaces

Maximum Voltage: 300V AC, 48V DC
Number of Screw Terminals: 12
Number of Terminal Studs: 2
Terminal Type: #10-24 Screw, 5/16"-18 Stud
Continuous Rating: 250A
Base Material: UL 94-V0 Rated, Glass Reinforced Thermoplastics
Bus Material: Tin-Plated Copper CDA 110 / UNS 11000
Recommended Screw Torque: 23 in-lb (2.6 N�m)
Recommended Stud Torque: 132 in-lb (14.91 N�m)
