Blue Sea Systems 4181 Backlit Push Button Switch OFF/(ON) - 15A

4181 Backlit Push Button Switch OFF/(ON) - 15A

Features:

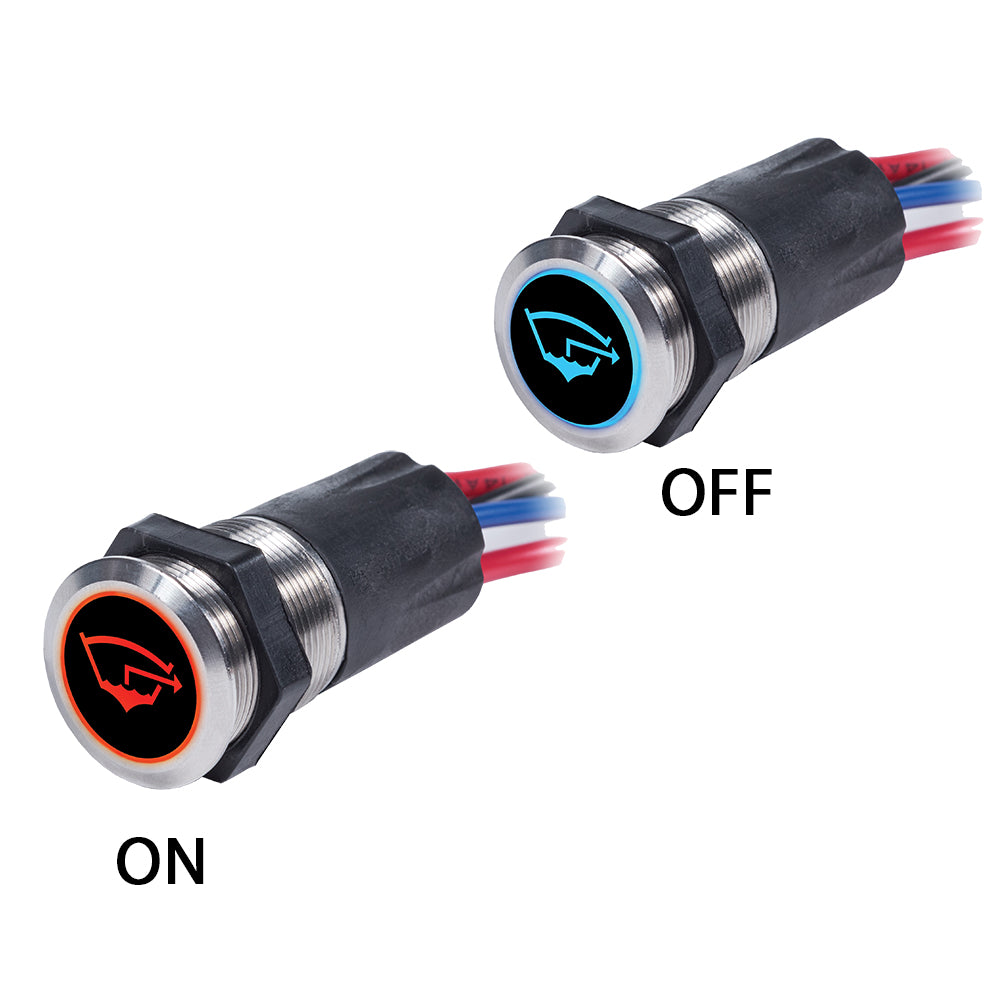

• Backlit button is blue when OFF and red when ON
• Five ICON labels included: Accessory, Lights, Anchor Light, Running Light, and Bilge Pump
• Additional 50 ICON label kit sold separately

Specifications:

• Action: OFF-(ON)
• Amperage: 15A @ 12V DC
• Nominal Voltage: 12V DC
• Maximum Voltage: 15V DC
• Maximum LED Operating Current: 20mA
• Switching Cycles: 10,000
• Temperature Range: -20°C to 55°C
• Termination: 3" - Bare Wire Pigtail
• Wire Size: Black & Blue Wires 18 AWG / Red & Red/White Wires 14AWG

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications

• Color: Stainless
• Action: (ON)-OFF

Manufacturer Part #: 4181
