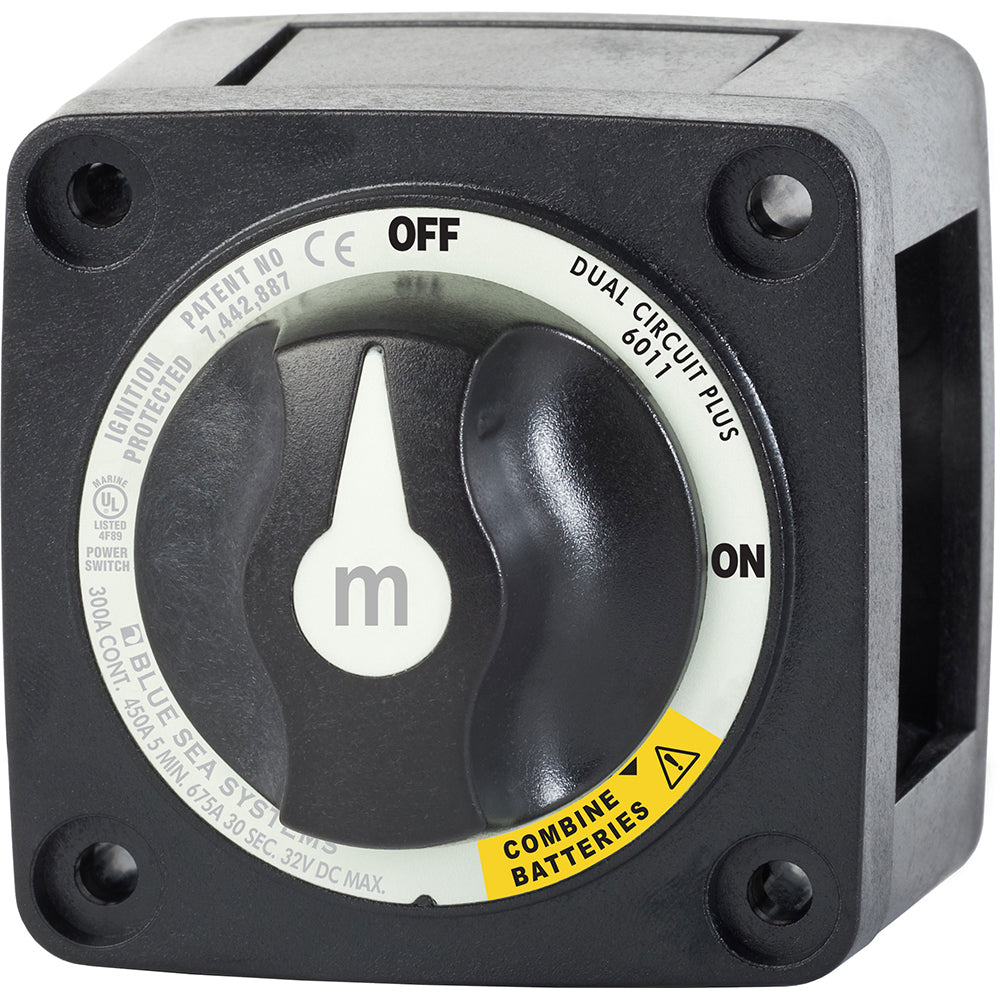

Blue Sea Systems 6011200 m-Series Battery Switch Dual Circuit Plus - Black

m-Series Mini Dual Circuit Plus Battery Switch - Black

Simultaneously switches two isolated battery banks or combines battery banks to all loads.

Make before break contact design allows switching between battery banks without power interruption.

Switch Type: Dual Circuit Plus
Color: Black
Switch Positions: 3
Battery Combine: Yes
Alternator Field Disconnect: No
Maximum Voltage: 32V DC
Continuous Rating : 300A
Intermittent Rating : 450A (5 min)
Cranking Rating 10 sec: 1000A
Cranking Rating 1 min: 650A
Battery Inputs: 2
Cable Clearance For 4/0 AWG Cables: 1.12in (28.45 mm)
Cable Size to Meet Ratings: 4/0 AWG (120mm²)
Mounting Holes: Accept #10 Screw
Terminal Stud Size: 3/8"-16 (M10)
Terminal Stud Torque: 120 in-lb (13.56 Nm)
Weight: 0.80lb (0.36 kg)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications

• AFD: No
• Positions: 3
• Continuous Amperage: 300a

Manufacturer Part #: 6011200
