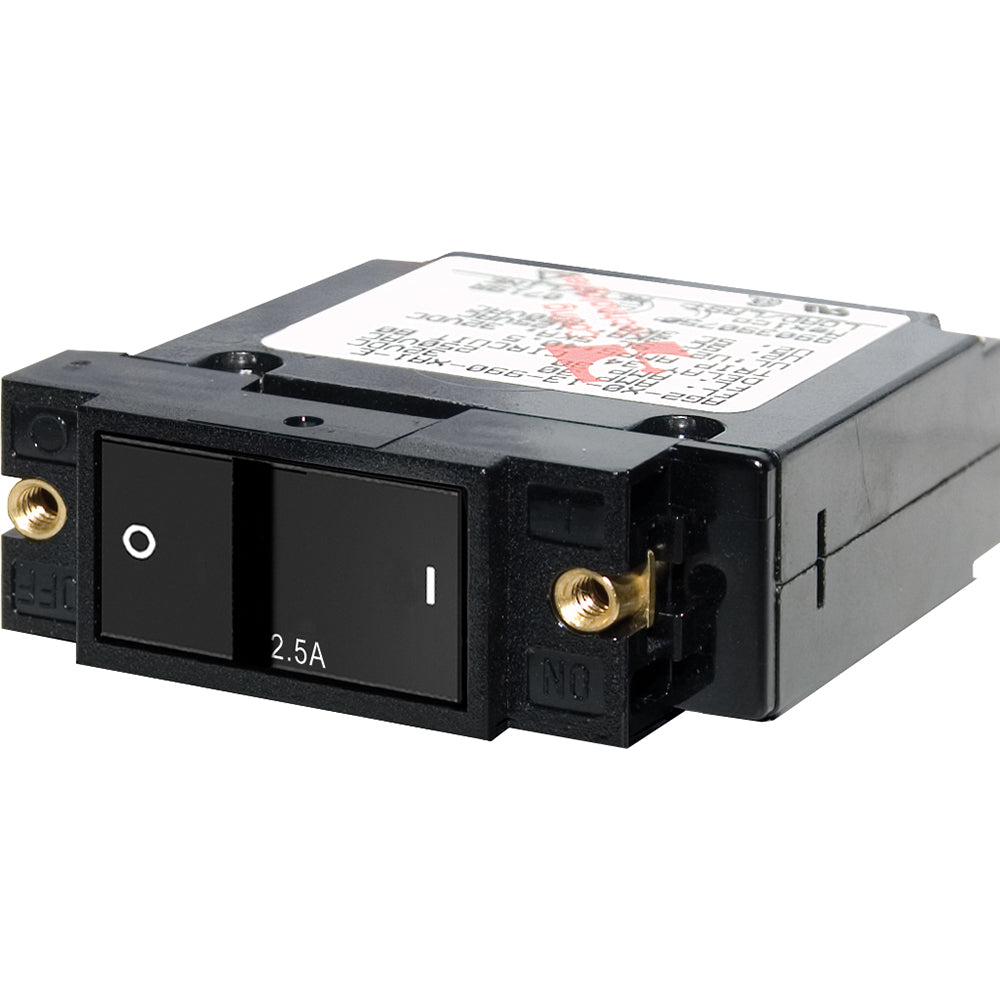

Blue Sea Systems 7399 A-Series Flat Rocker Circuit Breaker - Single Pole - 2.5A

• Rocker actuator is flush in the "ON" position, eliminating the risk of accidential switching

• Color actuator indicates "OFF" position

• "Trip Free" design cannot be held "ON" during fault current condition

• 2 different actuator styles available

• Prevents accidental switching of 24 hour circuits

• International ON/OFF symbols support vertical or horizontal mounting

• Amperage: 2.5A DC / 2.5A AC

• Actuator Style: Flat Rocker

• Poles: 1

• Max Voltage:250V AC / 32V DC

• Circuit Breaker Type: Magnetic Hydraulic - Trip Free

• Interrupt Capacity: 3000A @ 125V AC / 1500A @ 250V AC / 5000A @ 32V DC

• Minimum Operating Temperature: -40° C
• Maximum Operating Temperature: 85° C
• Mounting Screw: #6-32 Stainless Steel
• Mounting Screw Torque: 6 in-lb (0.68 Nm)
• Screw Terminal Torque 14 in-lb (1.58 Nm)
• Switching Cycles: 10000
• Terminal Screw: #10-32 Stainless Steel
• Weight: 0.21lb (0.1 kg)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications

• Amperage: 2.5a

Manufacturer Part #: 7399
