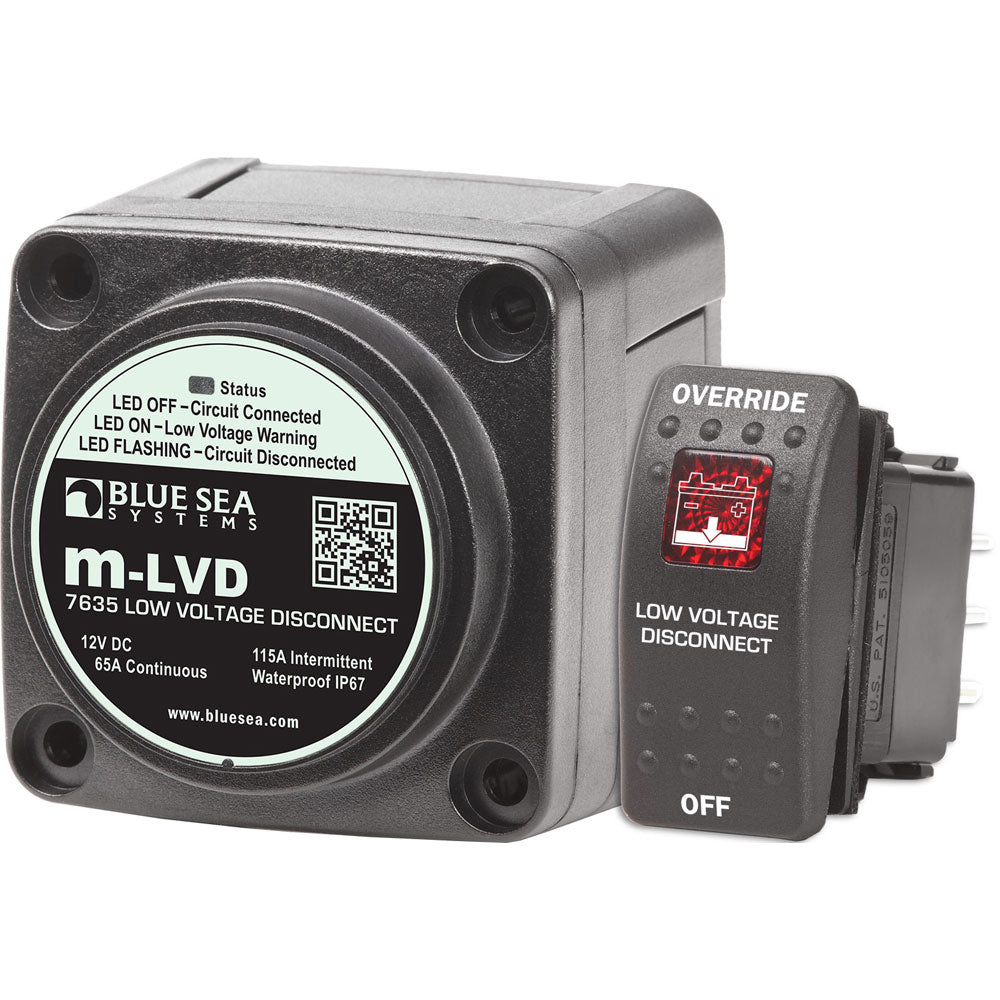

Blue Sea Systems 7635 m-LVD Low Voltage Disconnect

m-LVD Low Voltage Disconnect

Senses low battery voltage and automatically disconnects devices to save power for starting or to preserve battery life
A dead battery is one of the most common reasons for a tow. Don't get stranded with a dead battery. The m-LVD senses low battery voltage and automatically disconnects non-essential devices to save power for starting or to preserve battery life. The m-LVD is ideal for any single battery boat or vehicle that wants to avoid getting stranded with a dead battery.

• Status light in both m-LVD and Remote Control Switch provides visual warning of low voltage state prior to disconnect

• Alarm output available for audible warning of low voltage state prior to disconnect (optional alarm required)

• Remote Control Switch Functions:

  • Disconnect Voltage Adjustment - Sets desired disconnect voltage

  • Override - Temporarily delays circuit disconnect for 10 minutes

  • OFF - Temporarily disconnects circuits until voltage rises

  • Override or OFF - Silences alarm (optional alarm required)


• Case design allows surface, front panel, or rear panel mounting
• Rear insulating cover protects rear contacts

• Waterproof - rated IP67 for temporary immersion

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Manufacturer Part #: 7635
