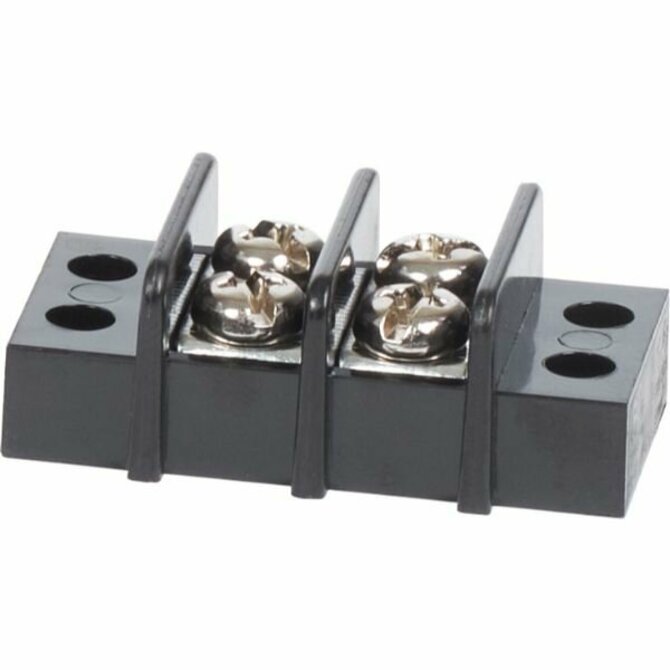

Blue Sea Terminal Block
Closed back design completely insulates power from the mounting surfaceEach screw pair is one isolated circuitJumpers allow creation of common circuitsCircuits: 2Length: 2.51in (63.75 mm)Maximum Voltage: 600V AC/DCContinuous...
Description
Closed back design completely insulates power from the mounting surface
Each screw pair is one isolated circuit
Jumpers allow creation of common circuits
Circuits: 2
Length: 2.51in (63.75 mm)
Maximum Voltage: 600V AC/DC
Continuous Rating: 65A
Base Material: UL 94 V0, PC
Bus Material: Nickel-Plated Brass
Mounting Screw: #10 [M5]
Screw Material: Stainless Steel
Screw Size: #10-32
Screw Terminal Torque: 17.5 in-lb (1.98 Nm)
Terminal Screws: M5
Wire Terminal Size: #10 [M5]
Specifications
Specifications
| Brand | Blue Sea Systems |
|---|---|
| Category | Terminal Block |
| SKU | 2508-BSS |

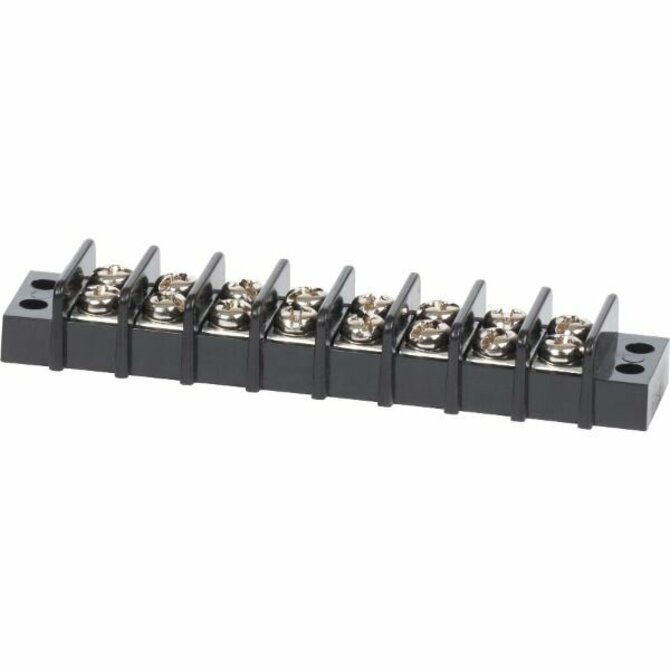

| Available circuts | 8, 12, 2, 4, 6 |
| Available amps | 30A, 65A, 20A |
| Available screw size | #8, #10-32, #6 |
