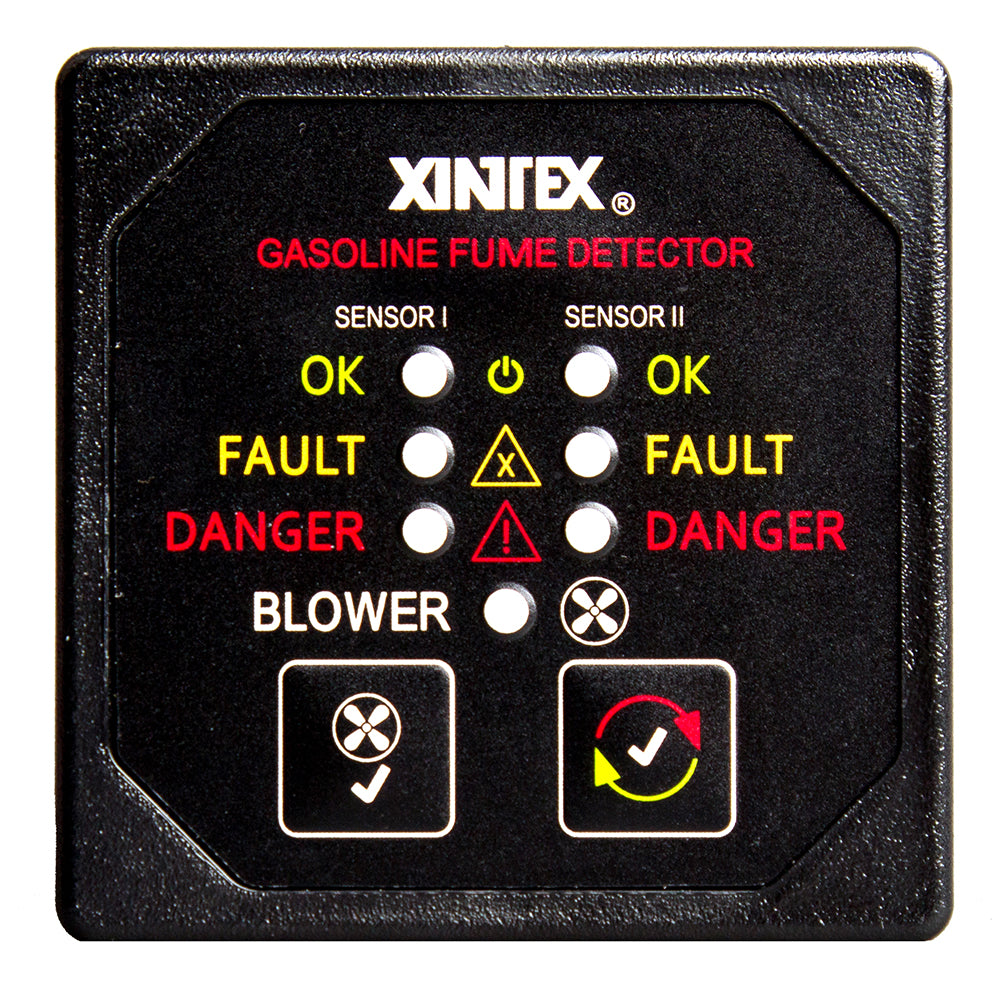

Fireboy-Xintex Gasoline Fume Detector with Dual Channel & Blower Control - 12/24V

Gasoline Fume Detector with Dual Channel and Blower Control - 12/24V

The Dual Channel Gasoline Fume Detector is an effective means to monitor gasoline fumes in an engine compartment, fuel tank storage area or in other areas where gasoline fumes might accumulate.

Complete system includes Blower Control Relay, easy installation and precise monitoring.

Features:

• Simple Installation
• Audible and visual alarm to indicate LEL (Lower Explosive Level) presence
• Monitors two (2) separate areas simultaneously
• Automatically activates bilge blower

Technical Specifications:

• Operating Temperature: -40° to 185°F (-40° to 85°C)
• Current Draw Nominal - 55mA
• Current Draw Maximum - 150mA
• Operating Voltage - 9 to 30V DC
• Alarm Horn - 68 dB
• Display Style - Square with Black Bezel
• Display Dimensions - 2-5/8" x 2-5/8" (6.7 x 6.7 cm)
• Cutout Dimension - 2-1/8" (5.4 cm) round hole

In the Box:

• Fume Detector
• Fuel sensors x two (2)
• 20' Extension Cable x two (2)
• Blower Relay x one (1)
• Instruction manual

*Sold as an Individual

Specifications

• Blower Relay: Yes
• Fume Type: Gasoline
• Generator Shutdown: No
• Sensors Included: 2
• Voltage - Input Range (Volts): 9-30v

Manufacturer Part #: G-2BB-R
