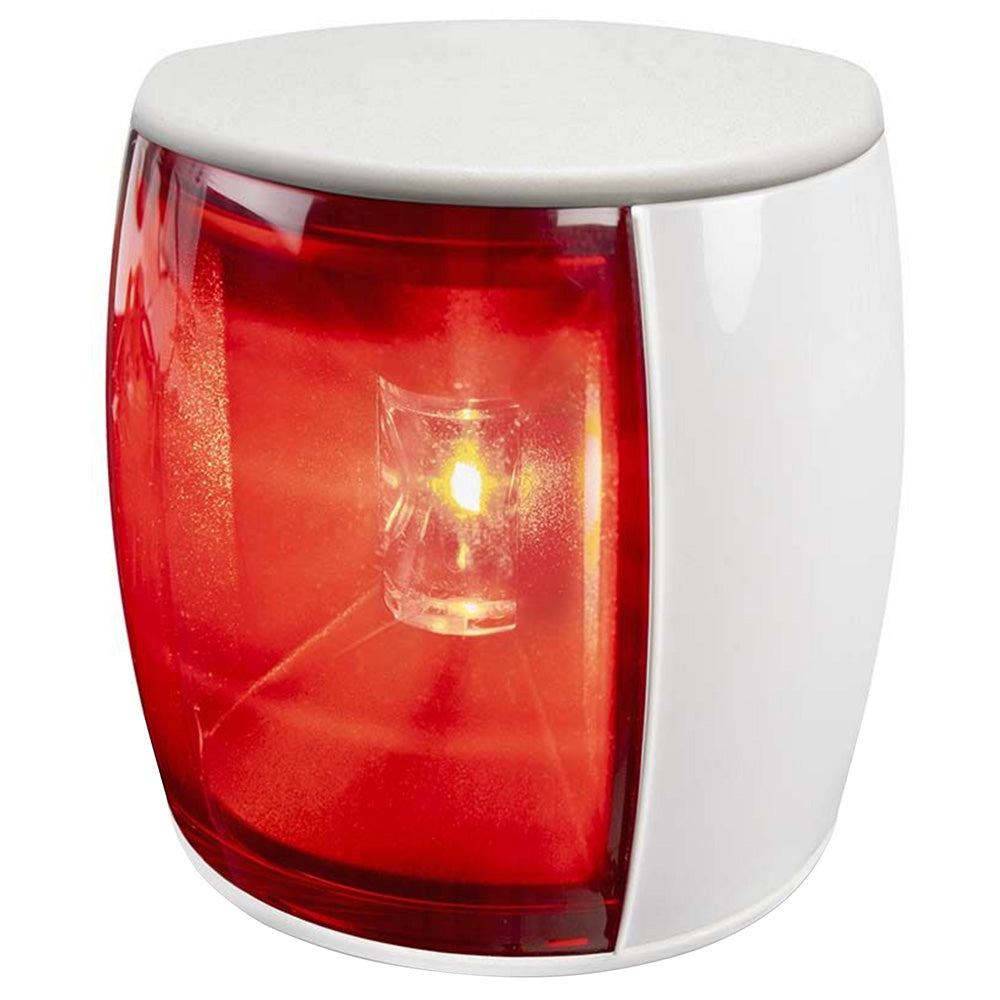

Hella Marine NaviLED PRO Port Navigation Lamp - White Shroud - Red Lens - 3NM

NaviLED PRO Port Navigation Lamp - White Shroud - Red Lens - 3NM

This NaviLED PRO port lamp covers vessel requirements over 50m. NaviLED®PRO lamps are proven worldwide on commercial, military, and recreational vessels.

Ultra-Low Current Draw

This port lamp consumes less than 3.2W combined.

No bulbs, No Maintenance, Ultra Long Service Life

Hella marine LED technology has no filaments to break, making NaviLED®PRO lamps extremely shock- and vibration-proof for proven reliability and safety in demanding conditions.

Multivolt™ 9-33V DC

Advanced electronics ensure reliable illumination and lamp protection even under severe voltage fluctuations and low battery voltages.

Fully Sealed for Life. IP 67 Certified

Each NaviLED®PRO lamp is a completely sealed unit. High-impact housings ensure durability from waves and impacts. Ultra-heavy-duty BSH versions use high-tech Grilamid® lenses to offer superior strength in extreme conditions.

Pre-wired with 2.5M of Twin-Core Marine Cable

High-quality cable assemblies for time-saving, completely sealed installations.

Specifications:

• Lamp Type: Port navigation
• Lens Color: Red
• Housing Color: White
• Material Description: High impact resistant acrylic lens
• Minimum Visible Distance: 3 Nautical Miles (Yachts and Powerboats)
• Cable: Pre-wired with 2.5M of twin-core marine cable
• Operating Voltage: Multivolt™ 9-33V DC
• Voltage Protection: Spike protected to +500 volts. Reverse polarity protected to -700 volts
• Power Consumption: Less than 3.2W combined.
• Degree of Protection: IP 67 - Completely Sealed
• Weight: 250g (including cable)
• Approvals: IMO Col Reg 72, RINA, USCG, ABYC A-16, Maritime NZ

Specifications

• Housing: White
• LED: Yes
• Lens Color: Red
• Visible Range (Miles): 3nm
• Voltage - Input Range (Volts): 9-33v

Manufacturer Part #: 017460111
