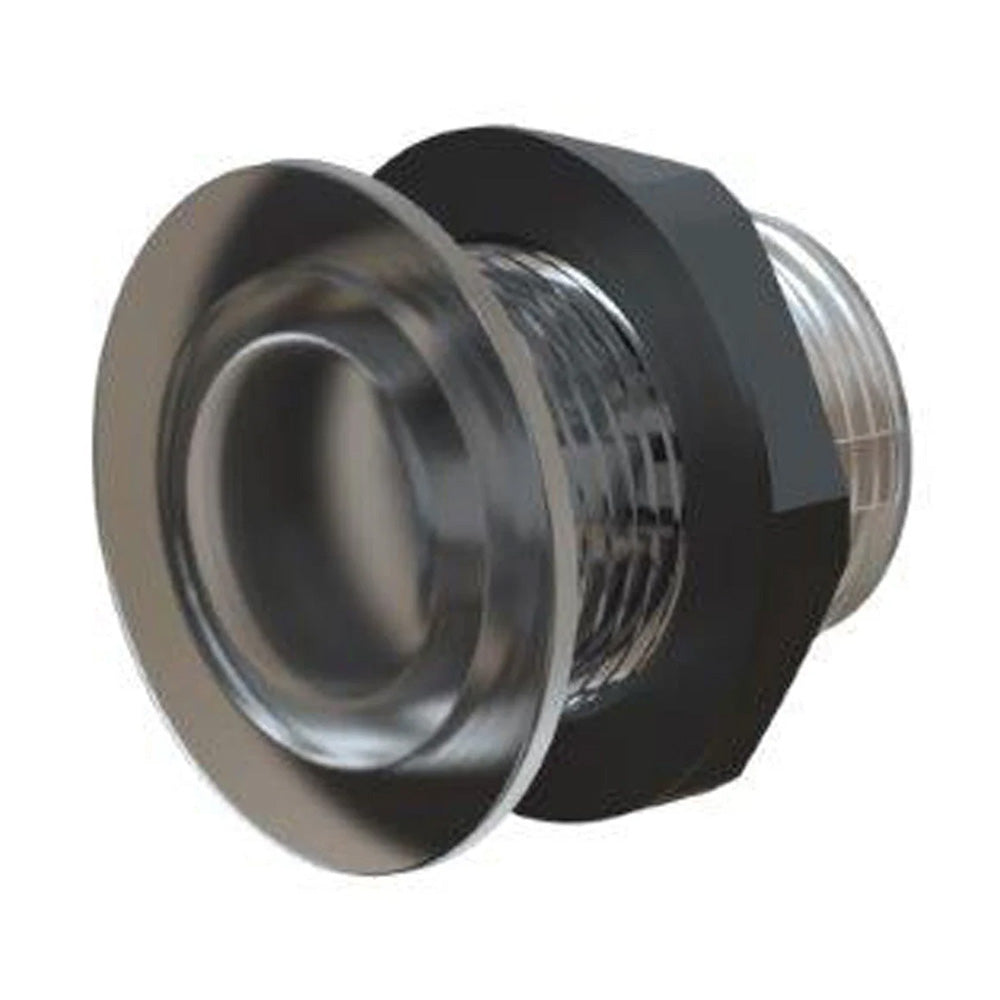

Lumishore ECLIPSE CL30 Courtesy Light - RGB

ECLIPSE CL30 Courtesy Light - RGB

ECLIPSE Courtesy Lights are great for illuminating walkways, stairwells, helm stations, and other design elements of a boat. Available in single color white and two other color options.

Constructed of a durable, clear acrylic body, completely water sealed and IP67 rated.

Measuring 33mm (1.3") in diameter, ECLIPSE Courtesy Lights are small and discreet and easy to install (2 wire hookup), flush mountable, and fit almost anywhere onboard.

Features:

• ECLIPSE Collection
• RGB
• 3 Year Warranty

Specifications:

• LED Type: 3 x 0.5W LEDs
• Customer Control Options: On/Off Switch or ECLIPSE Command Center
• Electrical Installation: Simple 2-Wire Installation
• Supply Voltage Range: 12V DC Only (10 - 15V DC)
• Max Current Draw (12V DC): 0.1A
• Ingress Protection: IP67
• Front Diamater (Bezel): 33mm (1.3")
• Depth: 30.0mm (1.180”)
• Hole Diameter for fitting: 25.4mm (1.0")
• Mechanical Installation: Panel Mount

Specifications

• Bulb Type: LED
• Dimming: Yes
• Housing: Clear
• LED Color: Variable
• Voltage - Input Range (Volts): 12v

Manufacturer Part #: 010-04542-00
