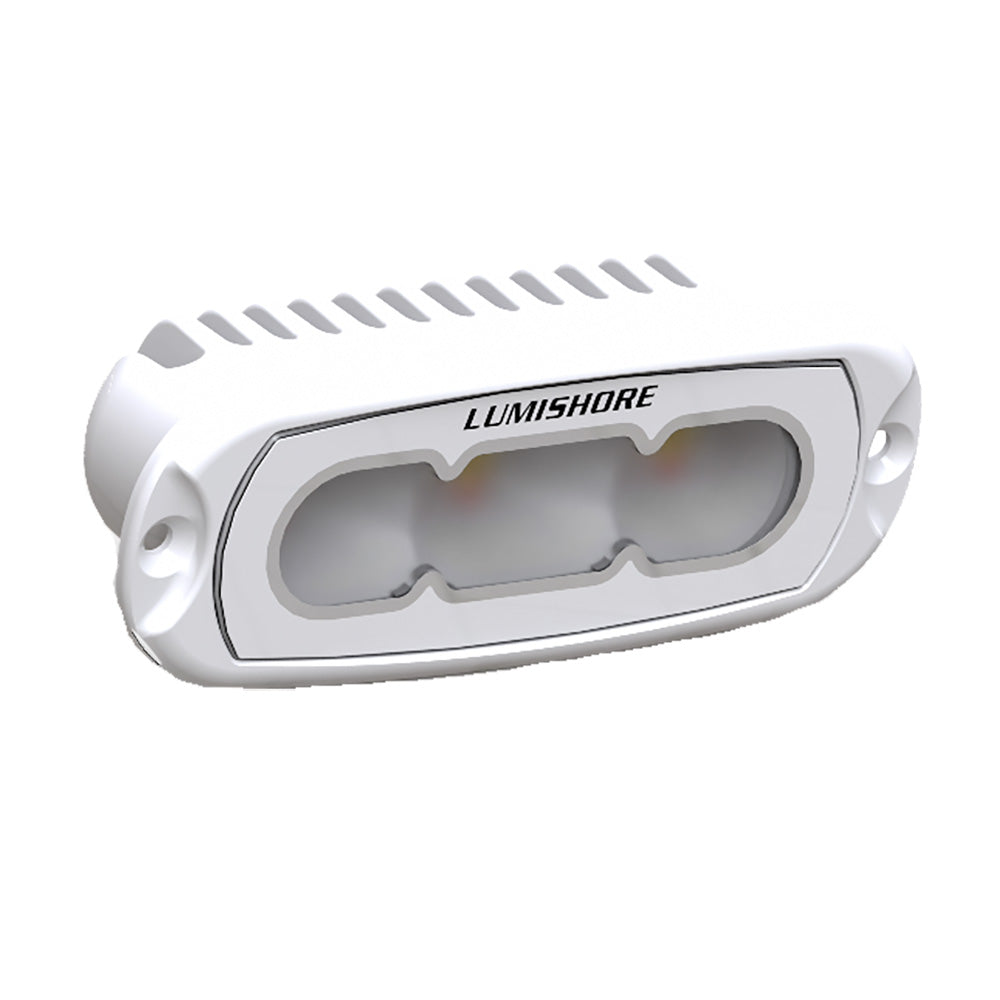

Lumishore LUX 4" Flood Light Flush Fit - CRGBW

LUX 4" Flood Light Flush Fit - CRGBW

Lumishore’s 4” Flush Fit Flood Lights deliver powerful CRGBW illumination in a sleek, low-profile unit. Designed for decks, cockpits, and exterior mounting points like T-tops, arches, and transoms, they offer a wide oval beam (70°–90°) and smooth, blended colors — including both warm and cold white, plus red, green, and blue.

Built for harsh marine environments with an IP68 rating and marine-grade aluminum housing. Control via switch, MFD, or Lumishore Display — with dimming as standard.

Specifications:

• Available colors: White Color Temperature Tunable (2700K to 6500K) and Full Spectrum RGB
• Lumens: 2,360
• Fixture Lumens: 1,050
• Number & Type Of LED: Warm White, Cold White, Red, Green, and Blue (5 Channel)
• LED Power HICOB Array: Yes
• Typical LED Life: 50,000+ Hours
• Warranty: 3 Years
• User Control Options: EOS-LUX Command Center or Customer Supplied Momentary Switch
• Electrical Installation: Simple 3 Wire Connection (see installation manual)
• Housing Type: Powder Coated Aluminium Body with Frosted Lens
• Driver: Multi-Channel Internal
• Supply Voltage Range: 10.5—31 V DC
• Max Current Draw 12/24V: 1.7 A/0.9 A
• Beam Angle: 70° - 90° Oval Beam
• Water Ingress Protection Rating: IP68

Specifications

• LED: Yes
• Voltage - Input Range (Volts): 12/24v

Manufacturer Part #: 010-04500-00
