Maretron

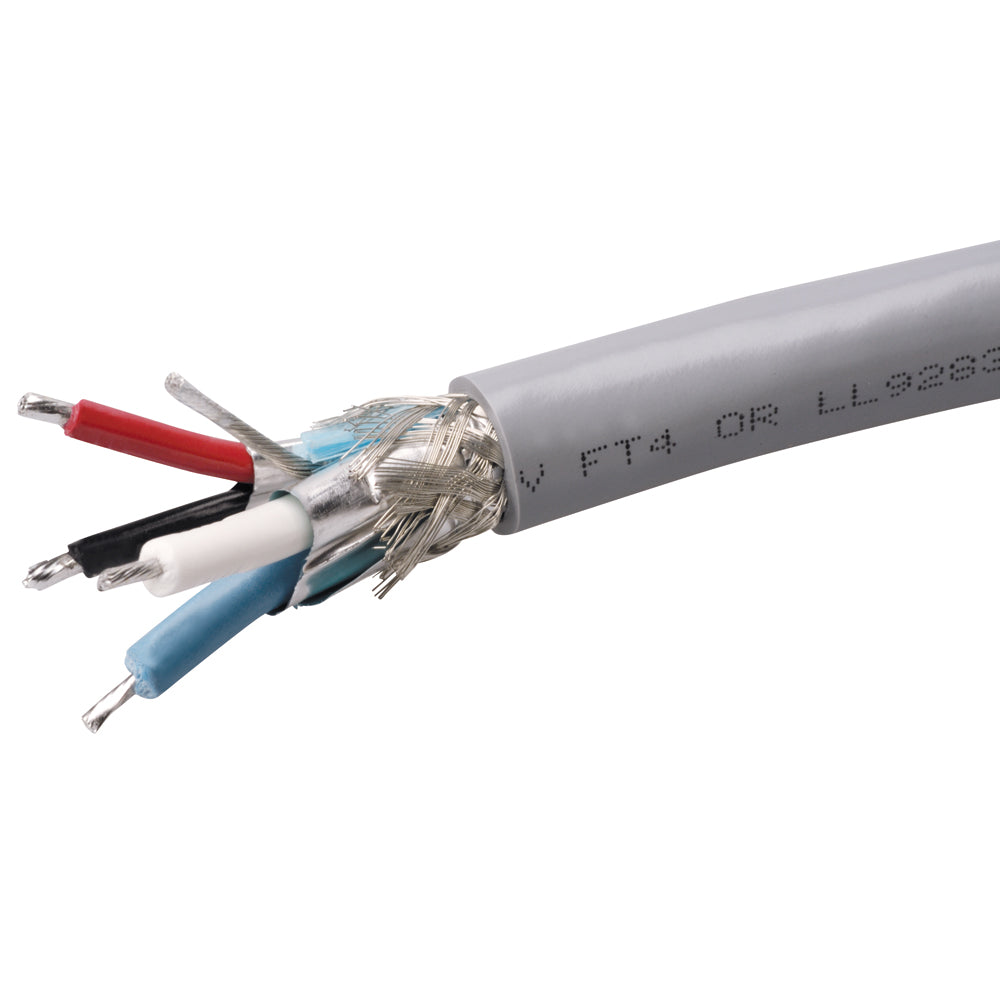

Maretron Mid Bulk Cable - 100 Meter - Gray

$545.00

SpecificationsOverall Outer Jacket Mat/Color: PVC/Gray - DG1 PVC/Blue - DB1 Insulation Material: PE (data wires), PVC (power wires) Construction: 2x16 (1.29mm) AWG, 2x20 (0.81mm) AWG, 20 (0.81mm) AWG...

Same Day Shipping Available
Free expert assistance · (609) 884-0330
30-day easy returns
Description
Specifications

Overall
  • Outer Jacket Mat/Color: PVC/Gray - DG1 PVC/Blue - DB1
  • Insulation Material: PE (data wires), PVC (power wires)
  • Construction: 2x16 (1.29mm) AWG, 2x20 (0.81mm) AWG, 20 (0.81mm) AWG Drain Wire
  • Shielding (3 levels): Foil (overall), Foil (power pair), Foil (data pair)

    Power Pair
  • Wire: 2x16 (1.29mm) AWG
  • Resistance/Conductor: 4.1 Ohms/1000 ft max
  • Max Amperage: 14 Amps
  • Color Code: Red/Black

    Data Pair
  • Wire: 2x20 (0.81mm) (AWG)
  • Characteristic Impedance: 120 Ohms +/- 10%
  • Capacitance: 10.75 pF/ft
  • Color Code: White/Blue

    Approvals
  • UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V
  • CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80 deg C 300V FT4
  • NMEA: NMEA 2000 Approved
  • IEC: IEC-61162-3

    Specifications

    • Data Interface: NMEA 2000
    • Cable Length (Meters): 100m

    Manufacturer Part #: DG1-100C

    • Specifications

    Specifications

    BrandMaretron
    CategoryNMEA Cables & Sensors
    UPC / Barcode873804003030
