Maretron

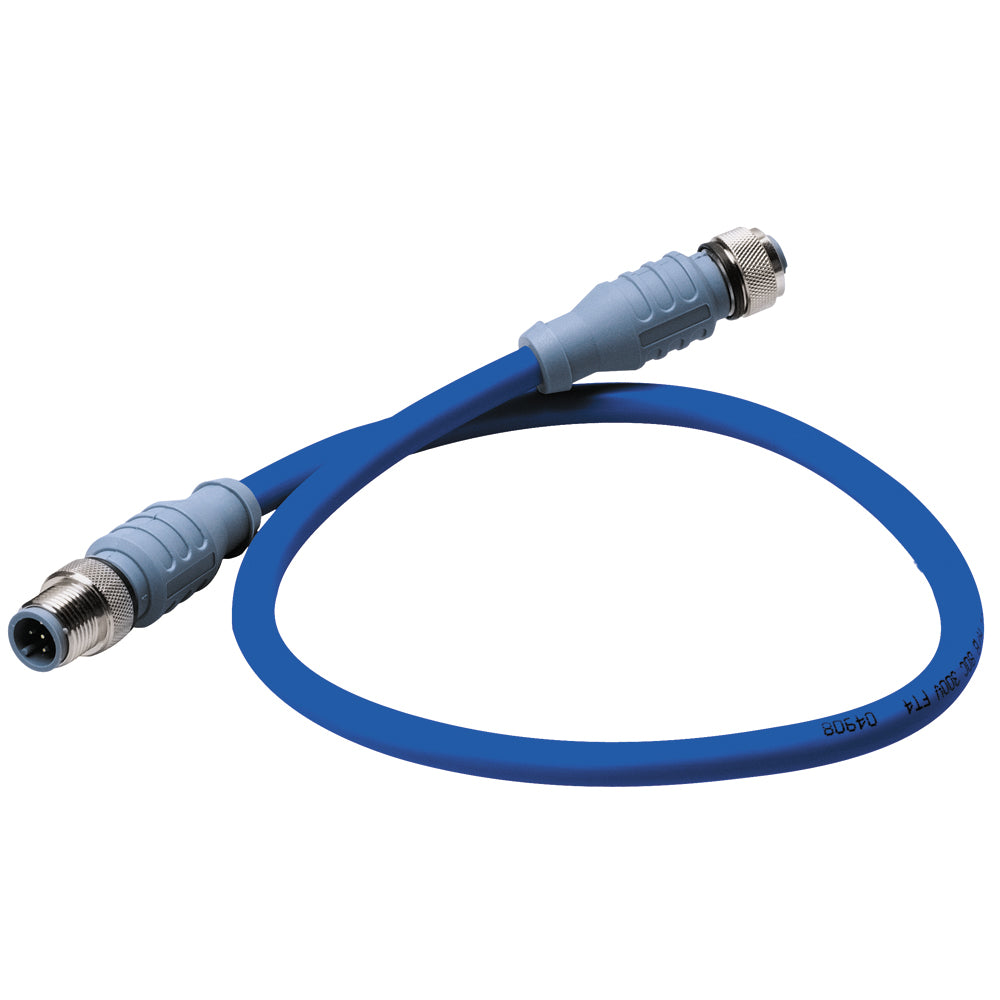

Maretron Mid Double-Ended Cordset - 10 Meter - Blue
$75.00
Save $-75.00
Maretron Mid Double-Ended Cordset - 10 M BlueMechanical:Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray Contact Mat/Plating: Brass/Gold Coupling Nut Mat/Plating: Brass/Nickel Connector Outside Diameter: 0.59"Electrical...
Free expert assistance · (609) 884-0330
30-day easy returns
Description
Maretron Mid Double-Ended Cordset - 10 M Blue
Mechanical:
Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
Contact Mat/Plating: Brass/Gold
Coupling Nut Mat/Plating: Brass/Nickel
Connector Outside Diameter: 0.59"
Electrical
Current Rating: 4.0 Amps
Voltage Rating: 250 V
Cable
Outer Jacket Mat/Color: PVC/Gray
Conductor Insulation Material: PE (data pair), PVC (power pair)
Number of Conductors: 2x16 (1.29mm) AWG, Data 2x20 (0.81mm) AWG, 20 (0.81mm) AWG Drain Wire
Shielding (3 Levels): Foil (Overall), Foil (Power Pair), Foil (Data Pair)
ENVIRONMENTAL
Protection Class: IEC IP68, NEMA 1,3,4,6P
Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)
APPROVALS
(Cable) UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V
(Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80 deg C 300V FT4
NMEA: NMEA 2000 Approved
IEC: IEC 61162-3
Mechanical:
Electrical
Cable
ENVIRONMENTAL
APPROVALS
Specifications
- Connection Gender: Male-Female
- Data Interface: NMEA 2000
- Cable Length (Meters): 10m
- NMEA 2000 Connectors: Backbone/Drop Cables
Manufacturer Part #: DM-DB1-DF-10.0
Specifications
Specifications
| Brand | Maretron |
|---|---|
| Category | NMEA Cables & Sensors |
| UPC / Barcode | 873804001999 |
