RAM Mount Marine Electronics Mount - Gimbal Bracket Under 15lbs.

RAM 2.25" Diameter Ball Mount with 11" X 3" Rectangle Base, & 3.68" Round Base

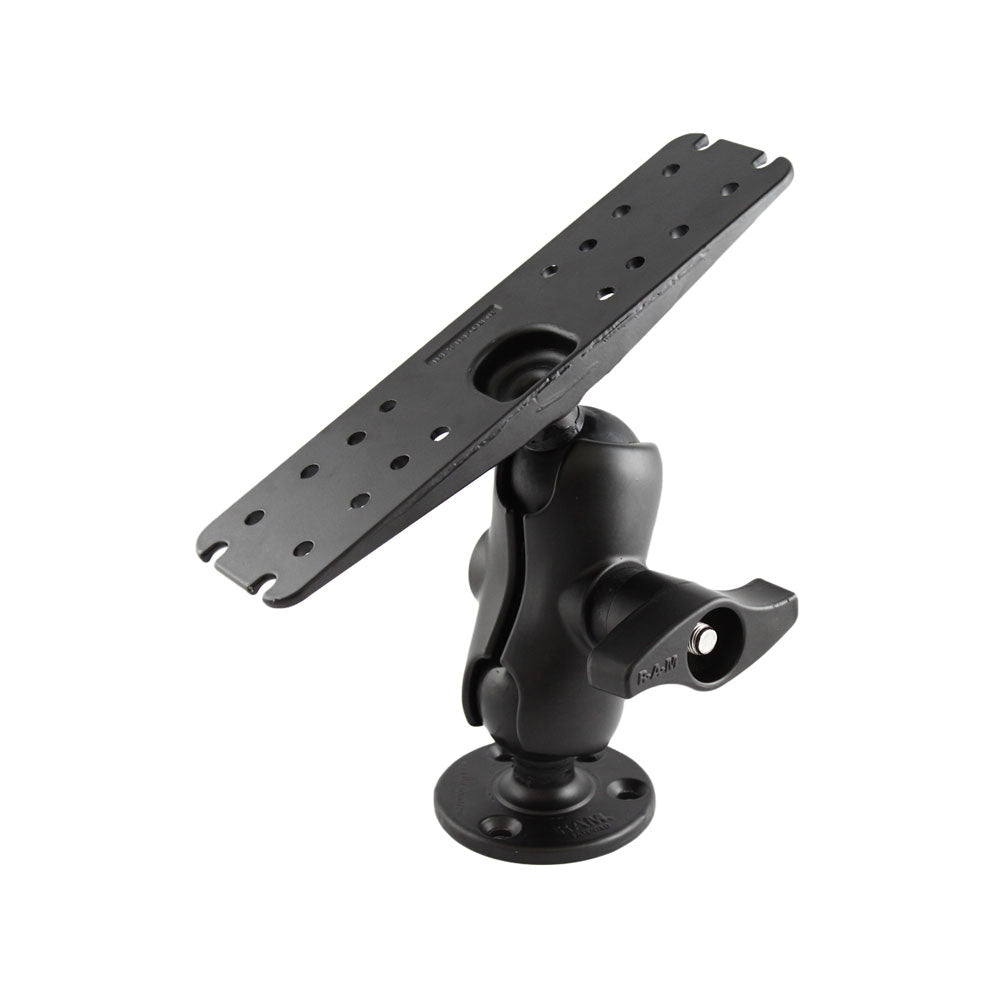

The RAM-D-111U-C consists of a short double socket arm, 3.68" diameter round base and 11" x 3" rectangular base. The round base contains pre-drilled holes, including two holes at 180 degrees and three holes at 120 degrees. The rectangle base contains different combinations of pre-drilled holes which will match up to many electronic devices and mounts, including Marine GPS, CB Radios, Ham Radios, Gimbal Brackets and more.

The RAM-D-111U-C is Compatible With:
Garmin Fishfinders and GPS Chartplotters
Humminbird Fishfinders and GPS Chartplotters
Lowrance Fishfinders and GPS Chartplotters
Raymarine Fishfinders and GPS Chartplotters

Overall Height:
8.125"

Weight Capacity:
Up to 15 lbs.

Weight:
3.45 lbs.

Material:
Powder Coated Marine Grade Aluminum

Ball Size:
2.25" Rubber "D" Ball Size

Note:
The "U" in the part number reflects product packaged in poly bag. The 11" x 3" rectangle base is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.

Manufacturer Part #: RAM-D-111U-C
