RAM Mount No Drill Vehicle System Dodge RAM 1500-5500 - 2012-2021

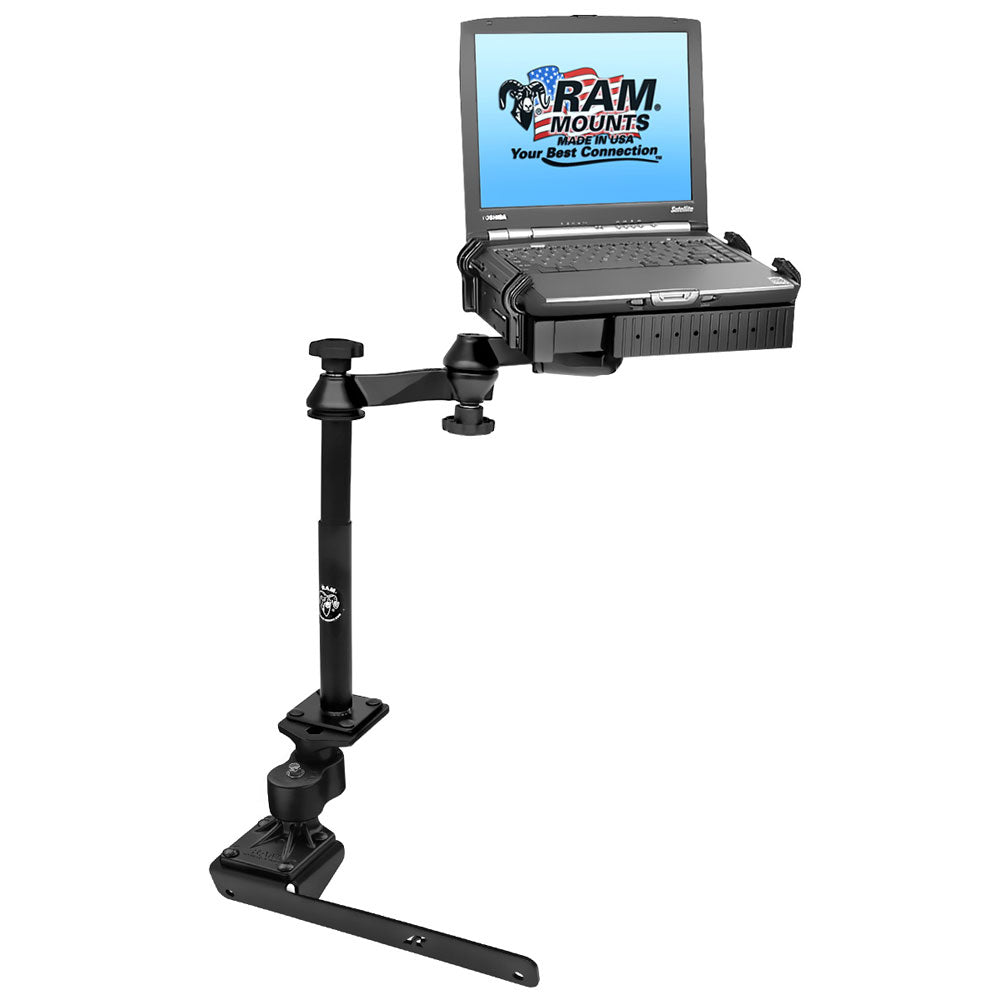

No-Drill™ Laptop Mount w/ Adjust-A-Pole™ f/ The Dodge RAM 1500-5500

This No-Drill™ Laptop Stand System installs quickly and easily into the specified vehicles using the existing hardware of the passenger side seat rails. This configuration provides a telescoping feature that ranges from 12 to 18 inches. Dual swing arms provide articulation and 12 inches of reach for passenger and driver access to the mounted device. Patented rubber ball and socket joint provides additional adjustment as well as shock and vibration isolation. The RAM Tough Tray™ is spring loaded to accommodate 10" to 16" wide laptops & (17" wide screens). The tray features four adjustable retaining arms with rubber grip feature. These arms can be moved both vertically and horizontally. This allows for a custom fit for varying thicknesses of laptops and the freedom of not blocking ports or drives. A screen support and USB light are also available to accessorize the tray. Hole patterns on perimeter of tray facilitate the mounting of additional RAM systems to support GPS or other electronics.

Compatible Vehicles:

RAM 1500 (2012-2018)

RAM 1500 Classic (2019-2021)

RAM 2500-5500 (2012-2021)

Placement of Mount:

Passenger side, front, where seat rail frame attaches to floor board.

Drilling Requirements:

No - attaches to seat studs

Seat Configuration:

Bucket

Material:

High Strength Composite and Powder Coated Steel

Notes:

Low profile design limits intrusion on passenger side leg space. Base will not interfere with levers or factory installed console or 4WD lever. Base designed to accommodate trucks with power take-off (PTO.)

If the Tough-Tray™ Laptop Cradle is intended to hold a laptop or device while the vehicle is in motion, we recommend the Secure-N-Motion™ kit.

Manufacturer Part #: RAM-VB-178A-SW1
