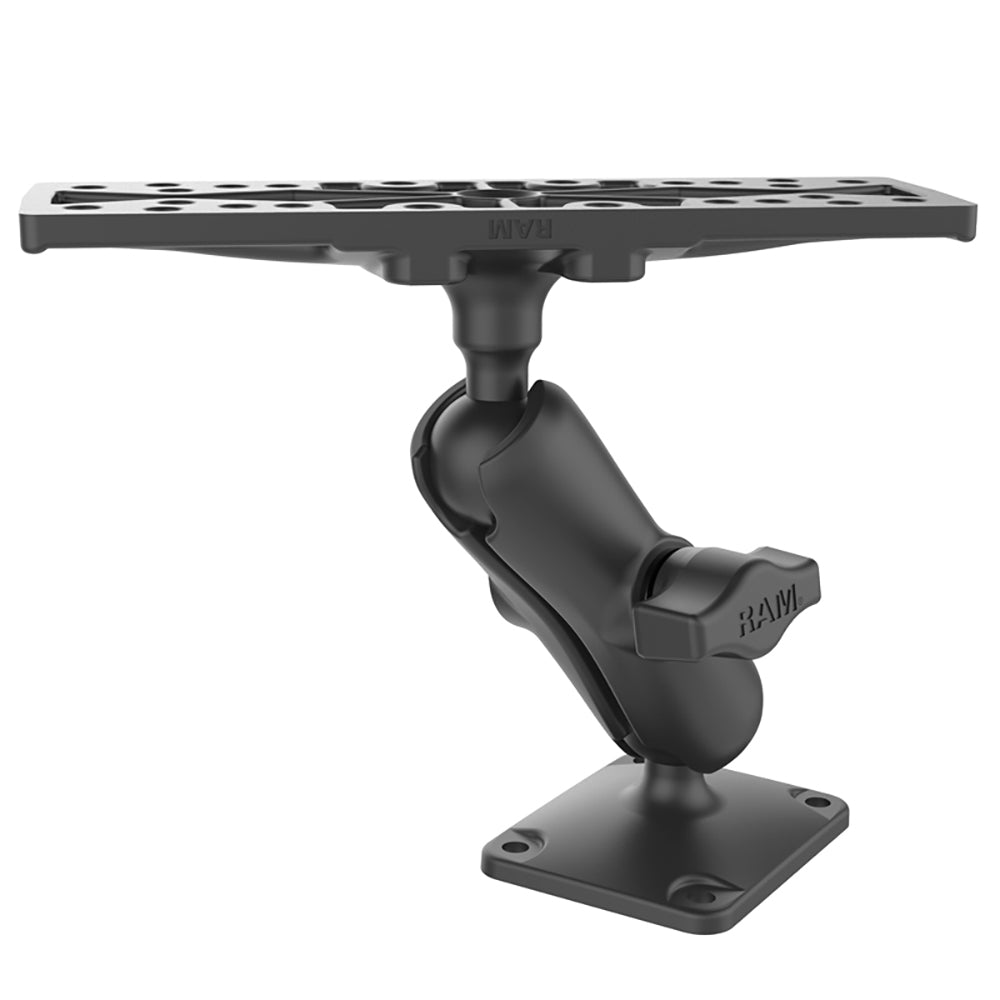

RAM Mount RAM® Composite Universal Marine Electronic Mount

RAM® Composite Universal Marine Electronic Mount

The RAP-B-111U consists of a 2" x 2.5" rectangle base, STANDARD length double socket arm and 6.25" x 2" rectangle plate. The rectangle base contains pre-drilled holes, including the universal AMPS hole pattern. The 6.25" x 2" rectangle plate contains different combinations of pre-drilled holes which will match up to many electronic devices and mounts, including Marine GPS, CB Radios, Ham Radios, Gimbal Brackets and more.

Specifications:

• Overall Height: 5"
• Socket-to-Socket Length: 3"
• Hole Pattern: 4-Hole AMPS: 1.181" x 1.496"
• Plate Size: Top Plate: 6.25" x 2", Bottom Plate: 2" x 2.25"
• Ball/Socket Size: B Size (1")
• Weight Capacity: 2lbs
• Materials: High Strength Composite

Manufacturer Part #: RAP-B-111U
