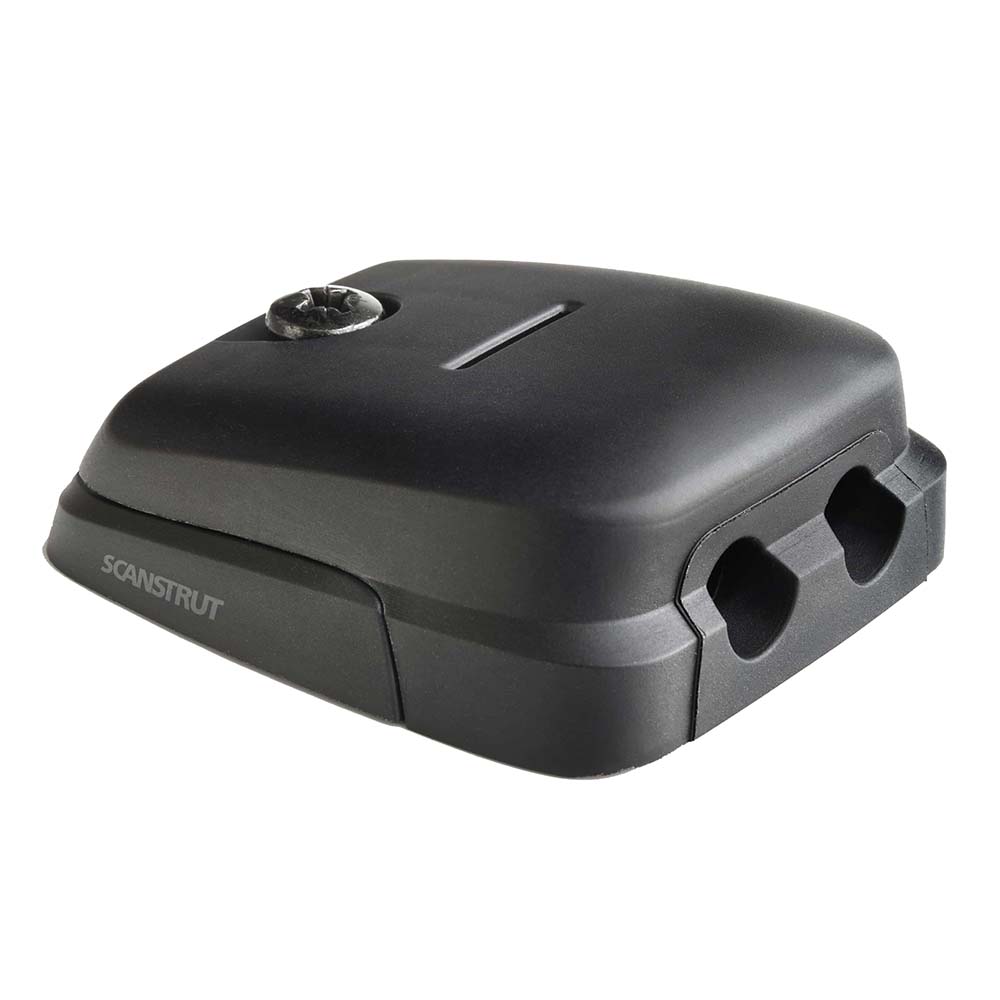

Scanstrut DS-HD6-BLK Horizontal Double Cable Seal - Black

DS-HD6-BLK Horizontal Double Cable Seal - Black

The best compact horizontal double-entry cable seal

The DS-HD6-BLK double horizontal cable seal was designed to eliminate the time-consuming and sub-standard routing of solar panel cables. This seal helps you achieve a sleek, easy-to-fit, and 100% watertight installation every time. Perfect for routing two solar panel cables externally to internally on the roof of boats.

This horizontal double-entry cable seal from Scanstrut provides the ideal solution to waterproof cable routing and is perfect for installing solar panels, light bars, antenna, and navigation light cables. A tapered gland forms a watertight seal around the cable and a closed-cell foam gasket between the housing and the deck ensures a 100% watertight fitting.

Features:

• Watertight installation - 100% waterproof with an IPX68 rating.
• Installs two (2) cables.
• Easy and reliable installation - each unit supplied with both pre-drilled and blank inner seals to make your installation as easy as possible.
• The low-profile construction is impact resistant and provides extra protection from water.

Technical Specifications:

• Fits cable size (diameter) up to - .23" (6 mm)
• Height - .87" (22 mm)
• Width - 2.13" (54 mm)
• Color - Black
• Orientation - Horizontal
• Material - Plastic

In the Box:

• Cable seal
• Mounting hardware
• Installation manual

*Sold as an Individual

Specifications

• Type: Deck Seal

Manufacturer Part #: DS-HD6-BLK
