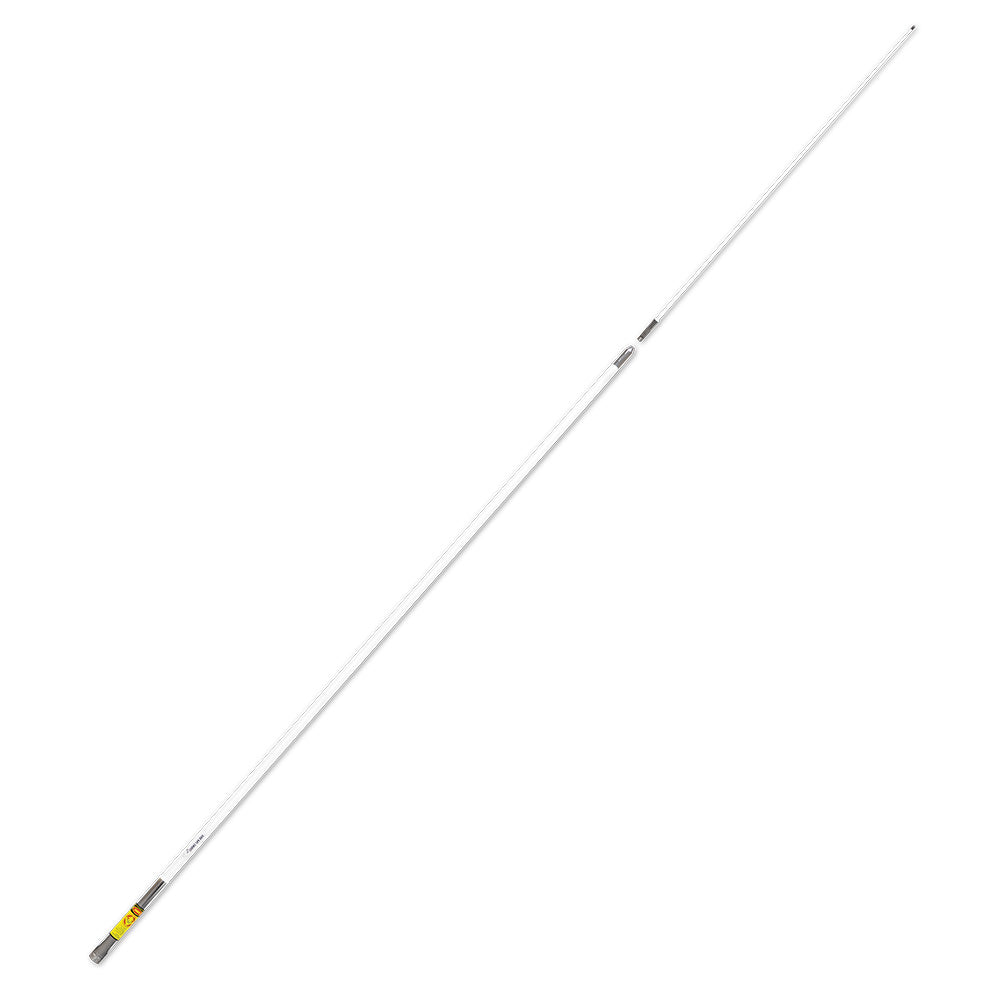

Shakespeare 399-1M 9'6" VHF Antenna

Style 399-1M VHF 6dB

Collinear Phased 5/8-wave with two coaxial chokes to suppress cable radiation

The Style 399-1M is the same as the 399-1, but it has a special sleeve for mast mounting. A professional quality antenna in a compact package. This extra-duty antenna combines strength and performance for use where you really need the efficiency of a large antenna, but don't have room for one.

• Brass and copper elements

• Chrome-plated brass ferrule with standard 1"-14 thread

• Aluminum sleeve for mast mounting

• Suggested mount: 1-1/4" U-bolts are supplied. The 399-1M can be strapped to a larger mast using steel banding (not supplied)

• Two sections: Base 75"; Tip 39" UPS shippable

Technical Specifications:

Frequency:	VHF Marine band
Bandwidth:	(within 2.0:1 SWR): 5MHz
SWR:	1.5:1 at 156.8 MHz
Impedance:	(ohms): 50
Gain:	6 dB
Max Input (Watts):	100
DC Ground:	YES
Termination:	SO - 239
Height (feet):	9.5
Polarization:	Vertical
Radiation pattern:	Omni-directional

Specifications

• Antenna Band: VHF
• Color: White
• Construction: Fiberglass
• Ferrule Type: Chrome Plated
• Length (Inches): 114"

Manufacturer Part #: 399-1M
