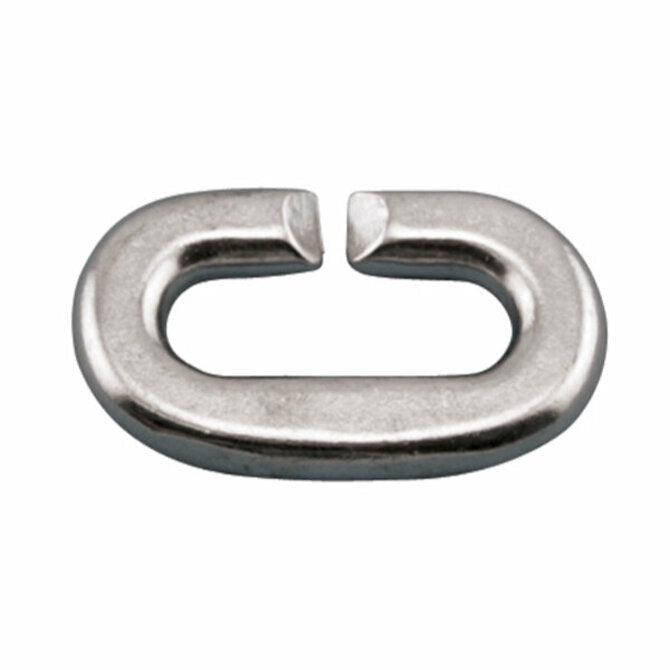

Suncor Stainless Steel Split Link
The “C” Connecting Links are primarily used to connect two chains or a chain to an end component. Quick connect and disconnect are achieved by turning the links...
Description
The “C” Connecting Links are primarily used to connect two chains or a chain to an end component. Quick connect and disconnect are achieved by turning the links 90 degrees to each other. These stainless steel links are made from 316 stainless steel for maximum corrosion resistance and durability.
| ITEM | A | B | X | Y | Z | WLL (lb) |
WT (lb) |
|---|---|---|---|---|---|---|---|
| S0165-0005 | 0.31″ | 0.75″ | 0.69″ | 1.13″ | 0.19″ | 160 | 0.03 |
| S0165-0006 | 0.37″ | 0.87″ | 0.87″ | 1.37″ | 0.25″ | 300 | 0.04 |
| S0165-0008 | 0.43″ | 1.25″ | 1.05″ | 1.87″ | 0.31″ | 400 | 0.09 |
| S0165-0010 | 0.56″ | 1.50″ | 1.32″ | 2.26″ | 0.38″ | 500 | 0.18 |
| S0165-0013 | 0.75″ | 2.00″ | 1.25″ | 3.00″ | 0.50″ | 700 | 0.38 |
| S0165-0016 | 0.87″ | 2.50″ | 2.13″ | 3.76″ | 0.63″ | 1,200 | 0.70 |
| S0165-0020 | 1.12″ | 3.00″ | 2.62″ | 4.50″ | 0.75″ | 2,000 | 1.10 |
Specifications
Specifications
| Brand | Suncor Stainless |
|---|---|
| Category | Split Link |
| SKU | s0165-0080 |
| Available size | 5/16", 3/8", 1/2'' |
| Available material | Stainless Steel |
