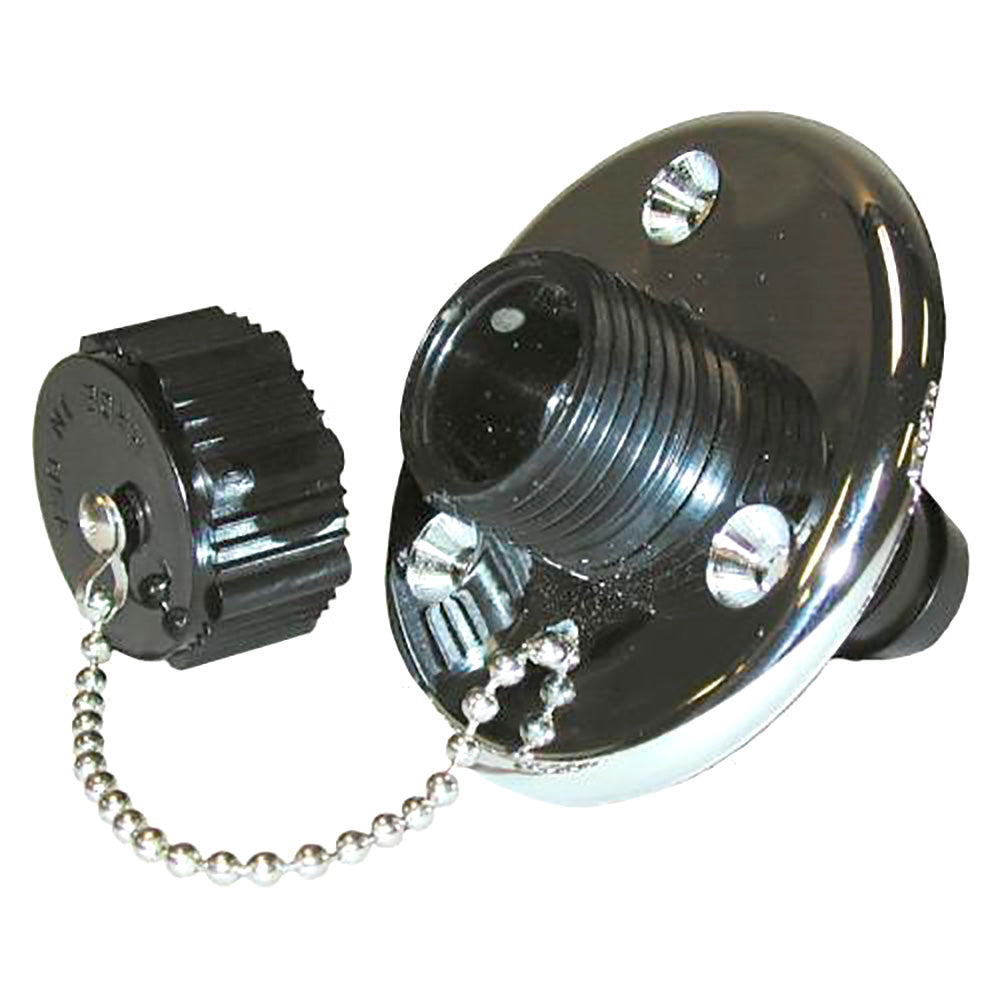

T-H Marine Washdown Valve with Chrome Base

Washdown Valve with Chrome Base

A bulkhead-mounted washdown fitting that is inexpensive, functional, easy to install, and rust-proof. This injection-molded, chrome-plated ABS fitting is 2 1/4" in diameter and mounts in a 1 1/4" diameter hole with 3 countersunk screws.

Features:

• A barbed hose fitting connects 3/4 in. inside-diameter tubing
• Standard hose threads with a protective cap that has a retaining strap are standard
• Chrome-plated ABS flange
• Injection-molded, UV-stabilized, and rust-proof
• Standard garden hose thread outlet
• The inlet fits 3/4 in. marine hose
• Protective cap with retainer
• The flange dimension is 2-1/4 in. OD
• Installation in a 1-1/4" hole
• Straight fitting with shutoff valve

Specifications

• Type: misc

Manufacturer Part #: WDV-1CP-DP
