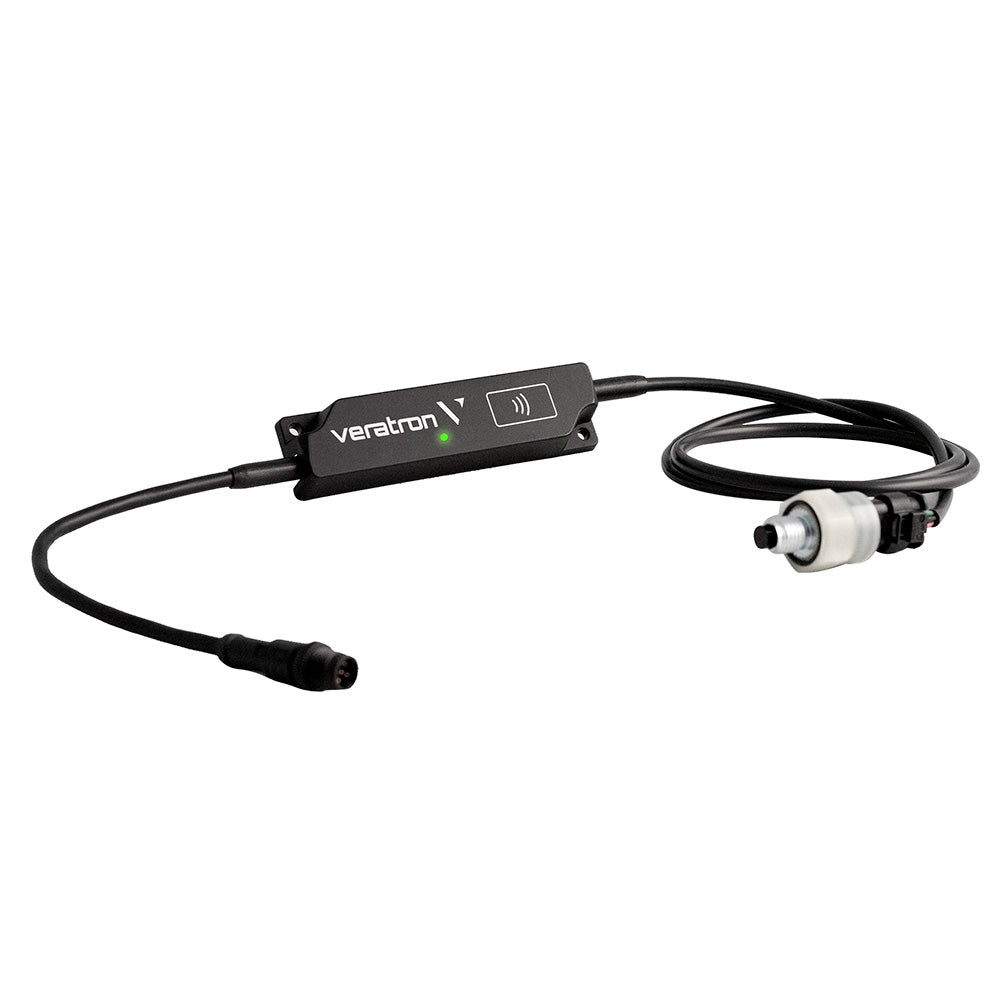

Veratron LinkUp Intelligent Temperature & Pressure

LinkUp Intelligent Temperature & Pressure

This Sensor measures simultaneously the engine oil's temperature and pressure while providing the data to the LinkUp, which translates it to the NMEA 2000® standard.

Features:

• Interface to the new electronic 2-in-1 sensor
• Oil Temperature and Pressure in a single sensor
• Rugged and reliable design derived from the automotive field
• ASIC-controlled sensor
• PWM (Pulse Width Modulated) output to transmit both pressure and temperature

Technical Specifications:

• M12 mounting thread
• IP 69/K protection class
• 5V power feed provided by the LinkUp
• Temperature accuracy ± 1°K in the 135 °C – 160 °C range
• Pressure accuracy ± 0.2 bar (range 0.5 –3 bar), ± 0.1 bar below and ± 0.3 bar above
• Temperature range: -40 °C + 160 °C
• Pressure range: 0.5 to 10.5 bar
• 1M cable length

Manufacturer Part #: B00070501
