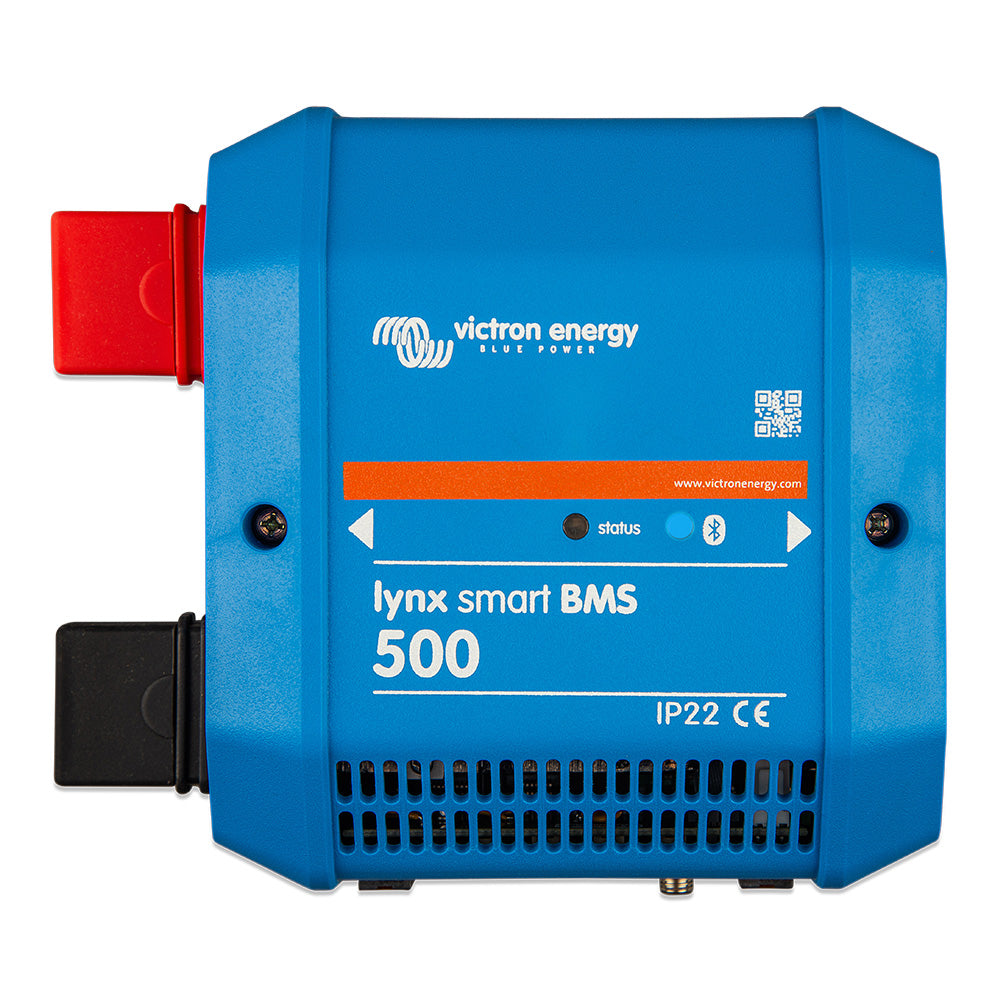

Victron Lynx Smart BMS 500 M10 Battery Management System

Lynx Smart BMS 500 M10 Battery Management System

The Lynx Smart BMS is a dedicated Battery Management System for Victron Lithium Smart Batteries. There are multiple BMS-es available for our Smart Lithium series of batteries, and the Lynx Smart is the most feature-rich and complete option. It is available in two versions: 500A and 1000A (both with M10 busbar connections).

Features:

• Built-in 500A or 1000A contactor used as a fallback safety mechanism and also suitable as a remote controllable main system switch.
• Battery monitor, indicating state of charge percentage and more data.
• Pre-alarm signal: provide a warning before the system shuts down due to -for example- a low cell.
• Bluetooth for use with our VictronConnect app, for setup and monitoring, including Instant Readout - key data of the BMS at a glance.
• Local and remote monitoring using a Victron GX device, for example, the Cerbo GX or Ekrano GX.

The Lynx Smart BMS is part of the modular Lynx Distribution system.

VictronConnect

VictronConnect lets you get live status information and configure any Victron products which either have Bluetooth built-in, or are connected to a VE.Direct Bluetooth Smart Dongle.

Manufacturer Part #: LYN034160210
