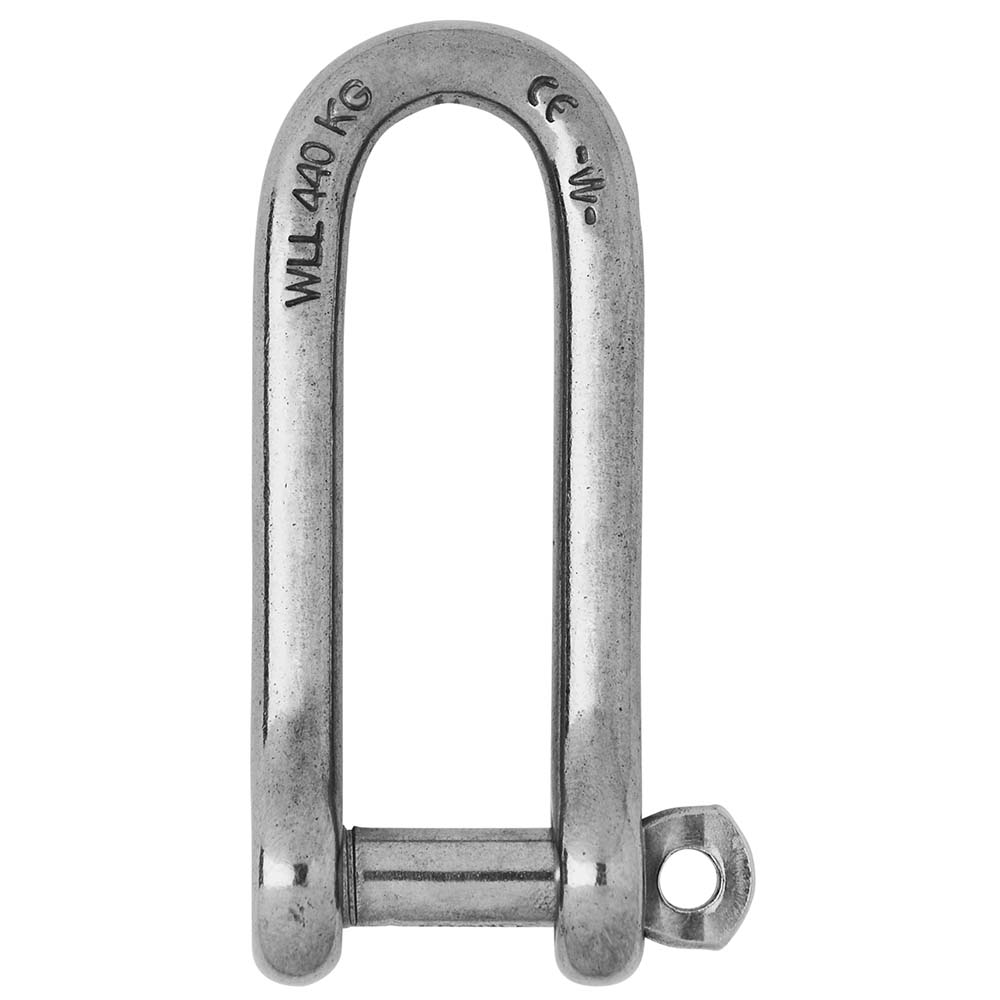

Wichard Captive Pin Long D Shackle - Diameter 4mm - 5/32"

Captive Pin Long D Shackle - Diameter 4mm - 5/32"

Features:

• Captive pin long "D" shackle forged in grade 316L stainless steel
• The pin is connected to the body at all times even when opened
• The pin is locked into one of the indentations
• No risks of loosening due to vibrations
• Outstanding working and breaking loads

Applications:

• Standard applications of shackle requiring more length
• Attachment applications: blocks, head...

Specifications:

• Materials 316 stainless steel grade
• Working load (lb) 700
• WLL (lb) 440
• Breaking load (lb) 2200
• Weight (lb) 0.026

Dimensions (see 2nd image):

• A (inch) 1-7/32"
• B (inch) 5/16"
• C (inch) 13/64"
• D (inch) 23/64"
• D diameter (inch) 5/32"
• E (inch) 5/32"
• F (inch) 1-39/64"
• G (inch) 55/64"

Manufacturer Part #: 1411W
