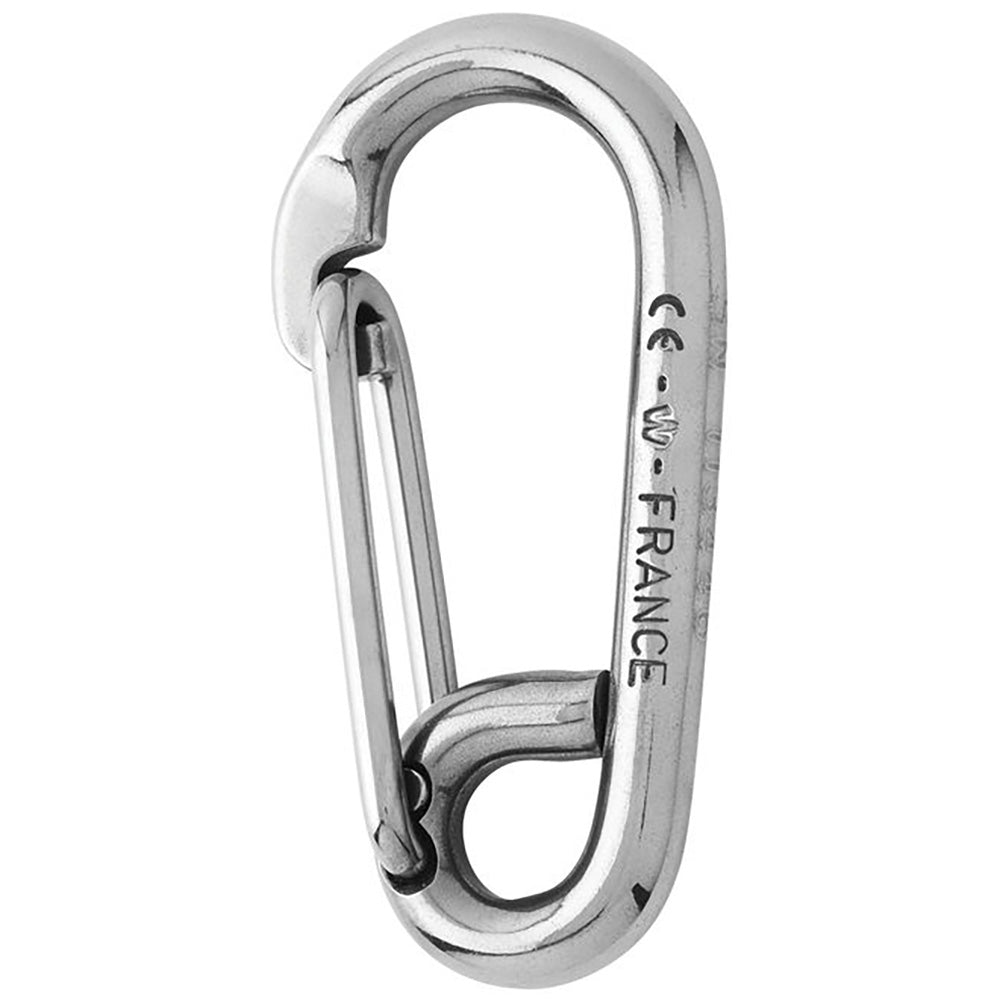

Wichard Symmetric Carbin Hook - 120mm Length - 15/32"

Symmetric Carbin Hook - 120mm Length - 15/32"

Features:

• Grade 316L stainless steel carbine hooks
• Symmetrical shape
• With eye to attach a webbing or a splicing

Applications:

• For fastening applications

Specifications:

• Materials: 316L stainless steel grade
• Working load: (lb) 2990 / (kg) 1360
• WLL: (lb) 1580 / (kg) 720
• Breaking load: (lb) 7930 / (kg) 3600
• Weight: (lb) 0.505 / (g) 229

Dimensions:

• A: (inch) 53/64" / (mm) 21
• B: (inch) 5/8" / (mm) 16
• D diameter: (inch) 15/32" / (mm) 12
• Length: (inch) 4 23/32" / (mm) 120

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

Manufacturer Part #: 2317W
