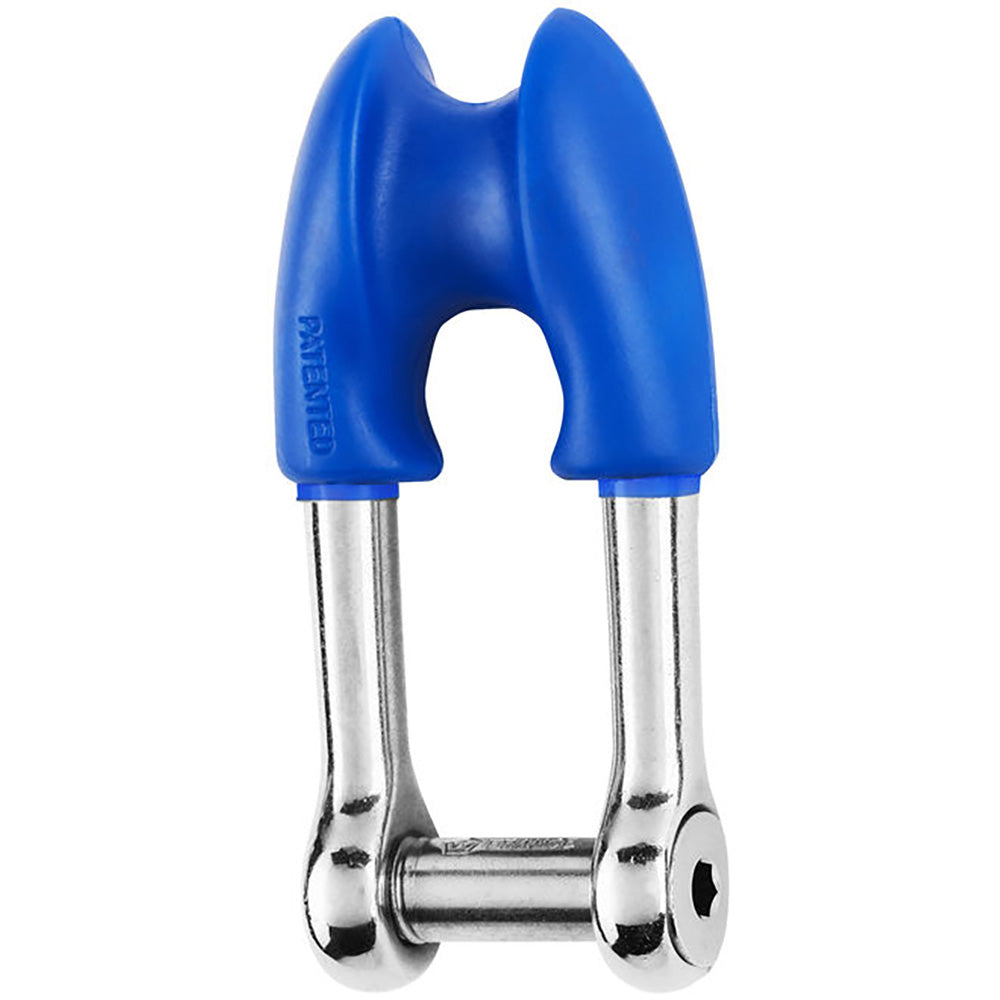

Wichard Thimble Shackle - Allen Head Pin - 8mm Diameter - 5/16"

Thimble Shackle - Allen Head Pin - 8mm Diameter - 5/16"

Features:

• Thimble shackle with allen head pin forged in grade 316L stainless steel
• Allows to spliced a rope without adding and additional thimble
• With the captive pin, no risk to lose the pin
• Outstanding working and breaking loads

Applications:

• Mainsheet halyards
• Max rope size: 12 mm

Specifications:

• Materials: 316 stainless steel grade
• Working load: (lb) 2200 / (kg) 1000
• Breaking load: (lb) 6610 / (kg) 3000
• Weight: (lb) 0.168 / (g) 76

Dimensions:

• A: (inch) 1 39/64" / (mm) 41
• B: (inch) 5/8" / (mm) 16
• C: (inch) 5/16" / (mm) 8
• D: (inch) 5/8" / (mm) 16
• D diameter: (inch) 5/16" / (mm) 8
• E: (inch) 9/32" / (mm) 7
• F: (inch) 2 63/64" / (mm) 76
• G: (inch) 1 19/64" / (mm) 33

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

Manufacturer Part #: 1394W
