Description

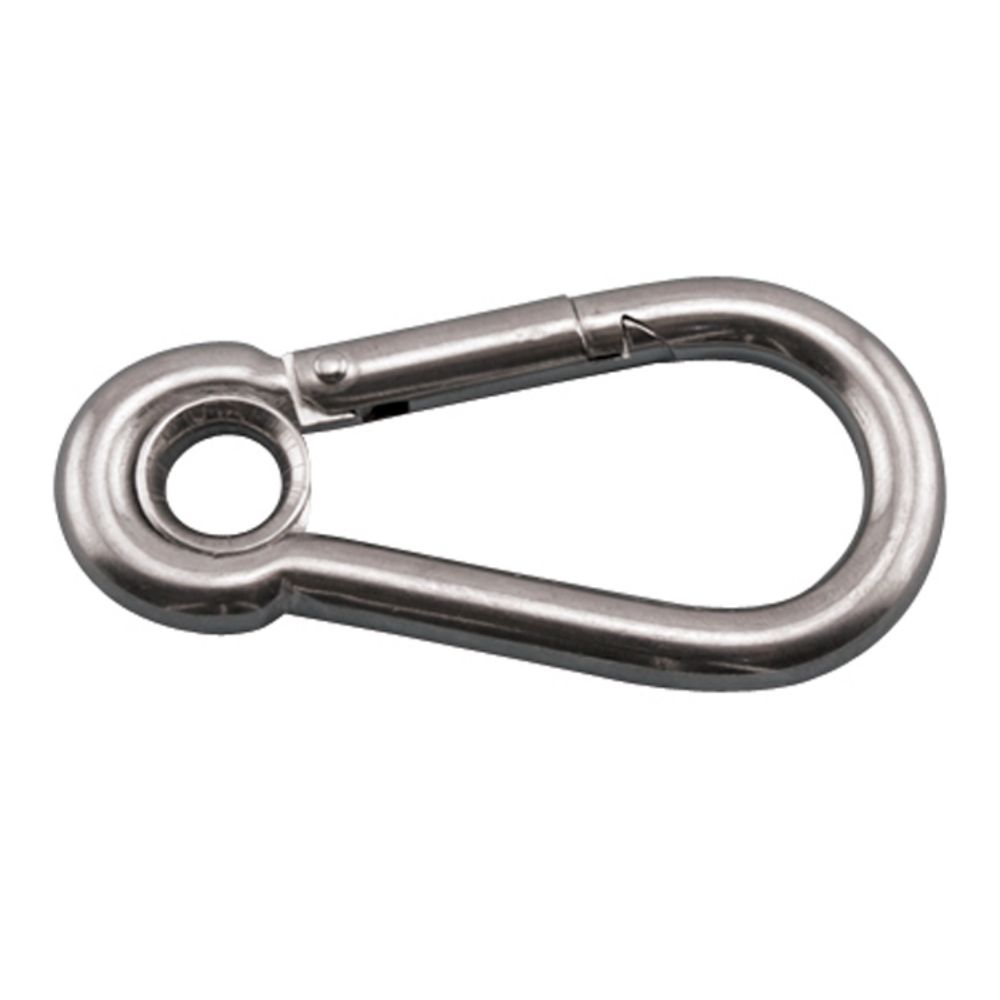

The Spring Clip with Eye is available in a range of sizes. This clip is made from grade 316 stainless steel for maximum corrosion resistance and durability, making it ideal for marine and industrial applications.
| ITEM | A (size) |
B | C | X | Y | Z | WLL (lb) |
WT (lb) |
|---|---|---|---|---|---|---|---|---|
| S0121-0050 | 3/16″ | 0.25″ | 0.25″ | 1.03″ | 2.00″ | 0.19″ | 120 | 0.04 |
| S0121-0060 | 1/4″ | 0.30″ | 0.27″ | 1.16″ | 2.38″ | 0.23″ | 150 | 0.06 |
| S0121-0070 | 9/32″ | 0.32″ | 0.34″ | 1.31″ | 2.75″ | 0.26″ | 200 | 0.09 |
| S0121-0080 | 5/16″ | 0.40″ | 0.38″ | 1.57″ | 3.13″ | 0.30″ | 280 | 0.14 |
| S0121-0100 | 3/8″ | 0.50″ | 0.54″ | 1.95″ | 3.88″ | 0.38″ | 400 | 0.27 |
| S0121-0120 | 7/16″ | 0.60″ | 0.65″ | 2.35″ | 4.75″ | 0.42″ | 500 | 0.41 |
| S0121-0140 | 15/32″ | 0.80″ | 0.80″ | 2.62″ | 5.50″ | 0.46″ | 750 | 0.57 |
| S0121-0160 | 1/2″ | 0.87″ | 0.95″ | 2.92″ | 6.15″ | 0.50″ | 900 | 0.76 |
